Description

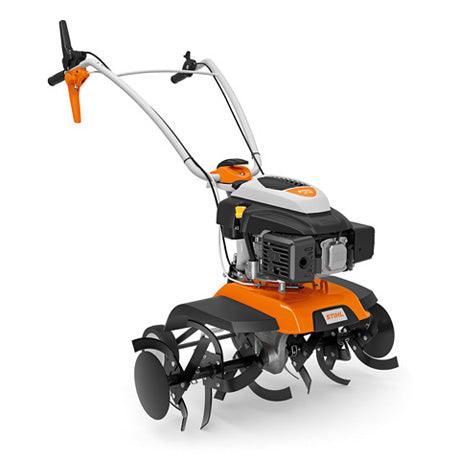

The STIHL tiller MH 685 is fast, durable, effective and suitable for a wide range of soil and ground types.
Even though the petrol engine ploughs new furrows powerfully, machine handling is still comfortable.
This is made possible by the anti-vibration elements between the gearbox housing and handlebar as well as the intelligent weight distribution of the tiller.
The height and width of the handlebar can be adjusted as required to guarantee maximum operating comfort. It can be folded up for storage purposes.
The machine runs both forwards and backwards while the brake spur ensures precision control. If required, the working width can also be reduced from 85 cm to 60 cm to plant crops close to one another.
A robust gearbox housing made from aluminium, worm shaft in hardened steel and worm gear made from bronze alloy also ensure a long service life.
The pair of wheels at the rear are folded up during operation but can be used to transport or store the MH 685.
| Technical specifications | Values |
|---|---|
| Working width | 85 cm |
| Working width | 85 cm |
| Hoe set diameter | 32 cm |
| tank capacity | 1,4 l |
| engine type | Series XT800 OHV SC |
| Drive | 1V + 1R |
| Engine type | B&S |
| Displacement | 173 cm³ |
| Working speed | 2,9 kW / 3,9 PS rpm |
| Working speed | 3.200 rpm |
| Weight | 46 kg |
| Guaranteed sound power level | 93 dB(A) |
| Measured sound pressure level LpA | 80 dB(A) |
| Uncertainty factor | 2 dB(A) |
| Uncertainty factor K | 2,4 m/s² |
| Vibration value (AHW) | 6 m/s² |
