Description

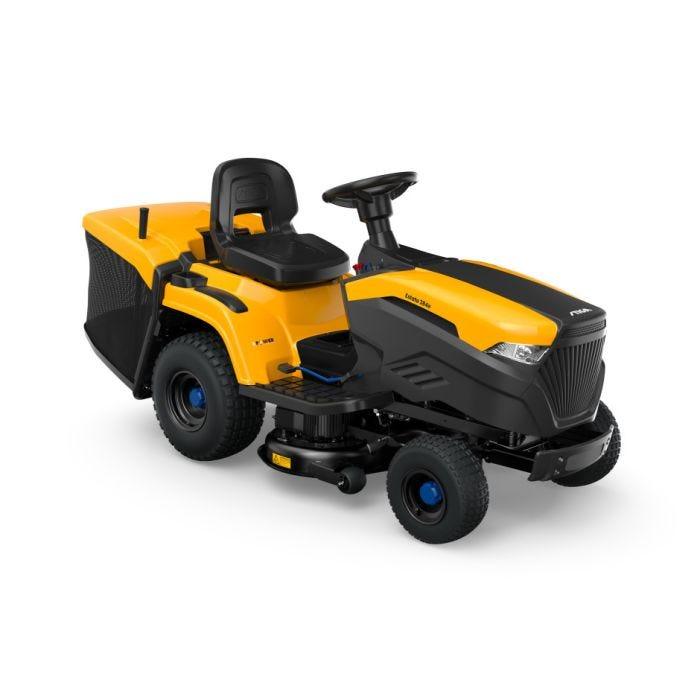

The Estate 384e lawn tractor provides the perfect blend of power and pleasure. This rugged riding lawn mower is driven by a potent STIGA 30Ah (Li-Ion) battery pack, developed and tested by STIGA in Italy. The result? Lawn coverage up to 3000sqm on just one charge – without engine noise, fumes and hassle of a petrol riding lawn mower. It also comes with a spacious 240l grass collector. Mulching plug and blades are available as optional, if you'd prefer to spread fine cuttings over your lawn.
- Battery powered petrol-free and stress-free riding mower
- 240l grass collector and mulching kit (sold separately)

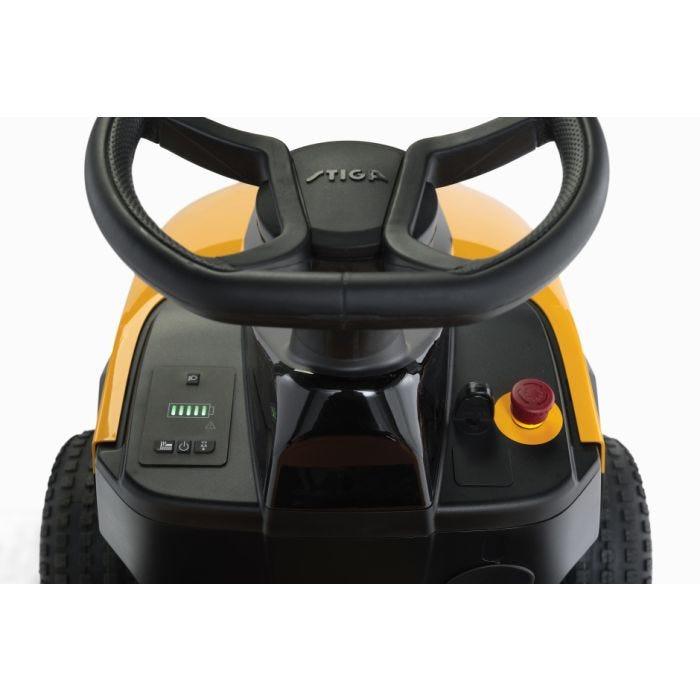

- Intuitive dashboard consolle with quick-press start button, battery status, and more
- Brake system integrated in the electric engine system, no brake pedal. Just release the transmission pedal and the tractor will stop automatically.
- 84cm cutting width, adjustable to 7 different heights
- 48V 30Ah battery included – Now comes with fast charger.
he Estate 384e's 48V 30Ah battery combines the comfort of a sit-on lawn motor with the power of a petrol lawn tractor. And because the battery's so powerful and durable, you'll enjoy rides lasting covering up to 3000sqm on one charge.
Your sit-on mower comes with a 240l grass collector, so you can focus on cutting your lawn, not going to the garden bin. An intuitive dashboard features the battery power status and quick-press start button. A powerful 1.2kW transaxle motor lets you reach speeds of up to 9km/h, while two cutting blade motors totalling 3kW are free from belts, pulleys and expensive maintenance. And thanks to an ample 84cm cutting width, adjustable to 7 heights between 25 to 80mm, you'll be finished and parked quickly.
CUTTING SYSTEM Stiga E-Ride C500 Battery Powered Ride-On Mower 84cm
Cutting method- Collecting
Minimum uncut radius-- 90 cm
Cutting width- 84 cm
Reverse mowing- Yes
Blade rotation- Untimed
Cutting height adjustment- Manual with lever
Cutting height positions- 7 positions
Cutting height range- 25 - 80 mm
Number of blades- 2
Blade type- Winged
Additional cutting method- Rear discharge, Multiclip mulching
Blade engagement type- Electric
Eco-mode- Yes
TRANSMISSION
Transmission method- Pedal-operated
Transmission type- Electric
TOOLS KIT
Mulching kit- Included
Battery charger- Single Fast charger
Trailer hitch kit- Not applicable
OVERALL DIMENSIONS
Pack weight- 245 kg
Product length- 2338 mm
Product width- 880 mm
Product height- 1100 mm
POWER
Battery capacity- 40 Ah
Power source- Lithium-ion battery
Power- 3 kW
Charging time- 8 h
Battery kit Included Voltage- 48 V
Battery type Lithium-ions
Lithium battery nominal energy 2000 Wh Number of cells 224
Charging current- 5 A
Charging system- External charger
Temperature control Yes - temperature sensors
Maximum working area- 3000 m²
DRIVE SYSTEM
Traction Rear-wheel drive
EQUIPMENT
Collector emptying- Manual
Collector capacity- 240 l
Steering wheel- STIGA ergonomic with soft grip
Seat type- STIGA classic
Seat adjustment- Screws
Dashboard- Yes with LED
Front wheel size-15x6.00-6
Rear wheel size- 18x8.50-8

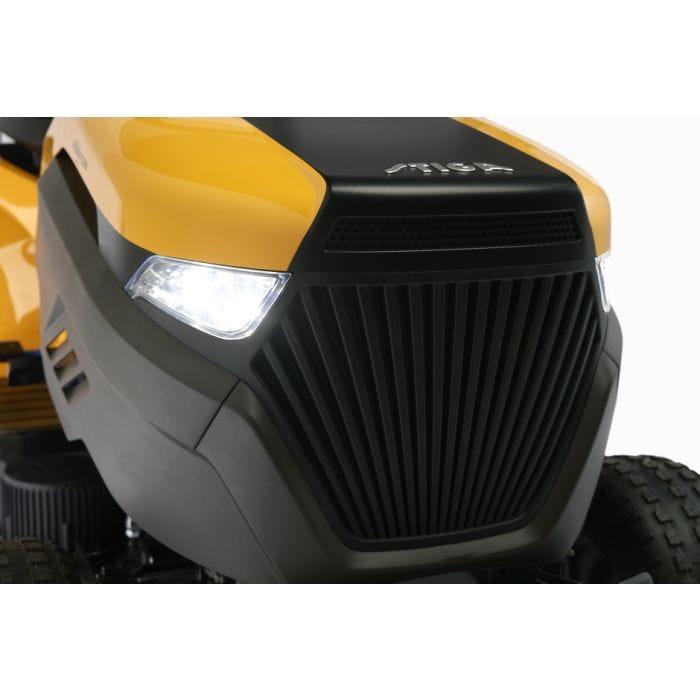

Headlights- Led
Cruise control- Yes
Bumper- Yes
Washing link- Yes
Collector type- Textile
Storage compartment- Yes
Cup holder- Yes
Pivoting front axle- Yes
Antiscalp wheels- 2
Safety system- Seat with Safety Contact Breaker
VIBRATION AND NOISE DATA
Guaranteed sound power level (LwA) - dB(A) 100
Measured sound pressure level at operator ear dB(A) 85.1
Measured sound power level dB(A) 99.74
Max vibration on driver's seat (m/s2) < 2.5
Your sit-on mower comes with a 240l grass collector, so you can focus on cutting your lawn, not going to the garden bin. An intuitive dashboard features the battery power status and quick-press start button. A powerful 1.2kW transaxle motor lets you reach speeds of up to 9km/h, while two cutting blade motors totalling 3kW are free from belts, pulleys and expensive maintenance. And thanks to an ample 84cm cutting width, adjustable to 7 heights between 25 to 80mm, you'll be finished and parked quickly.
STIGA ePower
Smart, safety tested and synched with STIGA products, ePower is the next generation in batteries. Tests we run on ePower batteries are 5 times tougher than Industry standard requirements, to ensure the highest quality standards in terms of performance, reliability and battery health through time. Our batteries are efficient, as we optimised and secured the position of each individual cell; safe, as we created space to allow air to cool; and smart, as we we developed and tested the electronics and software that controls the cells. They power longer and live longer, thanks to a smart energy management operated by all machines and tools running on interchangeable ePower batteries.
STIGA Smart cutting mode
All STIGA electric tractor mowers, Swift and Gyro are equipped with the STIGA Smart cutting mode function. While mowing, you can adjust the blade speed on 3 different settings, depending on the result you wish to see and on the conditions of the grass you are taking care of. Availabe speeds are Standard, Boost and Eco-Mode (which helps improving energy-efficiency). You can choose the blade speed directly from the dashboard, by simply pushing a button. A green LED-indicator will let you know at which speed you are cutting - you can change it anytime you want, while mowing.
STIGA Smart recharge schedule
When plugging your STIGA electric tractor mower in the garage or in your garden shed, you might prefer a certain timing for recharge, in order to save money on energy supply: open the STIGA.GO App on your smartphone and choose the Smart recharge schedule function so you can easily schedule a time slot for your tractor to recharge. It will only recharge in the given timeframe.
STIGA.GO app with virtual dashboard
Use your smartphone as a dashboard while driving, thanks to the STIGA.GO App! By installing the phone on the steering wheel throught the holder, you can always see real-time information about the working session: speed, battery charge left, but also a feedback from the tractor mower on cutting efficiency, so you can adjust either speed or cutting height and achieve the best cutting results.
