Description
- Aluminium base plate can be directly used on guide rails from Metabo and other manufacturers

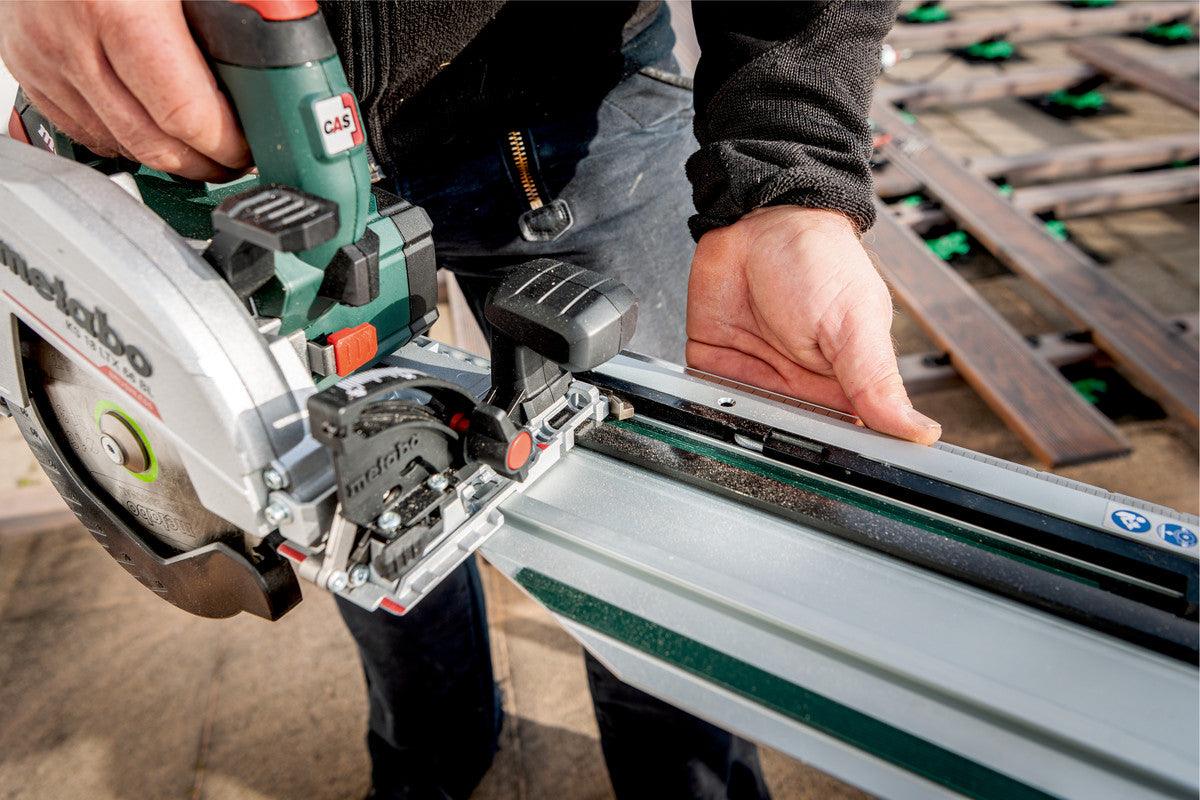

- Fast, precise cross cuts thanks to easy coupling with a Metabo cross cutting rail
- LIHD high-performance battery packs and the Metabo brushless motor guarantee maximum power and enduring sawing
- Automatic switching on/off of the connected vacuum cleaner thanks to CordlessControl. (available as accessory)
- Sawdust ejection nozzle for any working position can be rotated and locked individually
- Integrated LED work light for optimum illumination of the cutting line
- 0° position re-adjustable for highest cutting precision
- Clearly visible cutting indicator for precise sawing after initial cut
- Robust and durable thanks to aluminium die-cast saw housing
- Handle with non-slip soft-grip surface for safe guidance
- Extraction possibility by means of connecting an all-purpose vacuum cleaner
- Can be combined with all 18V battery packs and chargers of the CAS brands: www.cordless-alliance-system.com
Characteristics
Battery voltage- 18 V
Swivel range from / to:- 0 / + 46 °
Adjustable cutting depth- 0 - 66 mm // 0 - 2 19/32 "
Maximum cutting depth at 90°- 66 mm / 2 19/32 "
Maximum cutting depth at 45°- 43 mm / 1 11/16 "
Max. cutting depth with guide rail- 61 mm / 2 13/32 "
Saw blade Ø x bore- 165 x 20 mm // 6 1/2 x 5/8 "
Max. cutting speed- 43 m/s / 141 ft/s
Weight without battery pack- 3.5 kg / 7.7 lbs
Weight with battery pack- 4.5 kg / 9.9 lbs
Noise emission
Sound pressure level- 87 dB(A)
Sound power level (LwA)- 98 dB(A)
Uncertainty of measurement K- 3 dB(A)
