Description

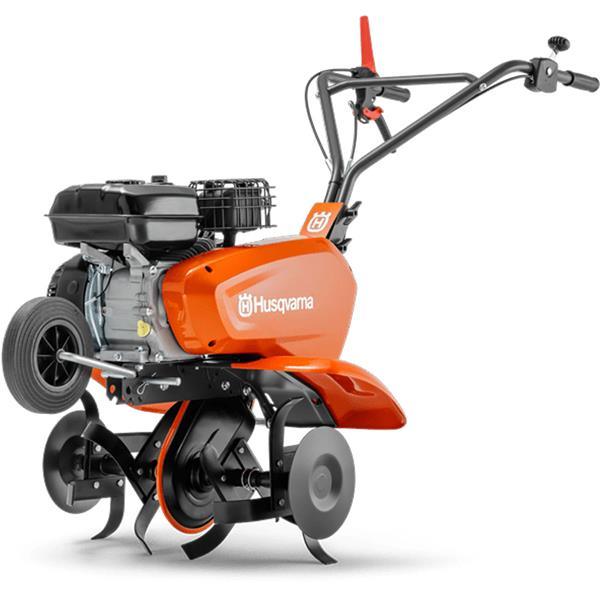

A realiable, easy to handle cultivator offering features such as a dependable engine, reverse gear and detachable transmission housing with lubrication possibility. Comfortable, adjustable and foldable handlebar with gear selection, transport wheel, drag bar and plant guards improve usability and ease of storage. Optional ridger with metal wheels.
Motor/engine manufacturer: Briggs & Stratton
Cylinder displacement: 9.95 cu.inch
Cylinder displacement: 163 cm³
Transmission type: Chain/Manual
Plant guards
Protect plants outside the working area.
Reverse gearbox
Improves maneuverability and control.
Detachable transmission
Detachable transmission housing with lubrication nipple.
Tine shield
Minimizes debris spray from the rotating tines.
Motor/engine manufacturer: Briggs & Stratton
Engine name: CR 750
Cylinder displacement: 163 cm³
Net power at preset rpm Energy: 3.3 kW
Rotational speed (min/max) max: 104 rpm
Rotational speed (min/max) min: 104 rpm
Engine oil capacity (L): 0.6
Cultivator type: Front-tine
Working width: 60.0 cm
Working depth: 30 cm
Tine diameter: 320 mm
Number of tines: 4
Transmission type: Chain/Manual
Transmission steps forward: 1
Transmission steps reverse: 1
Detachable transmission: Yes
Vertically adjustable handlebar: Yes
Horizontally adjustable handlebar: Yes
Foldable handlebar: Yes
Handlebar-mounted gear selection: Yes
Reverse gearbox: Yes
Drag bar: Yes
Plant guards: Yes
Transport wheel/s: 1
Ridger: Available as accessory (with metal wheels)
Weight: 46.0 kg
Sound pressure level at operators ear: 82.0 dB(A)
Sound power level, measured: 92.5 dB(A)
Sound power level, guaranteed (LWA): 93.0 dB(A)
