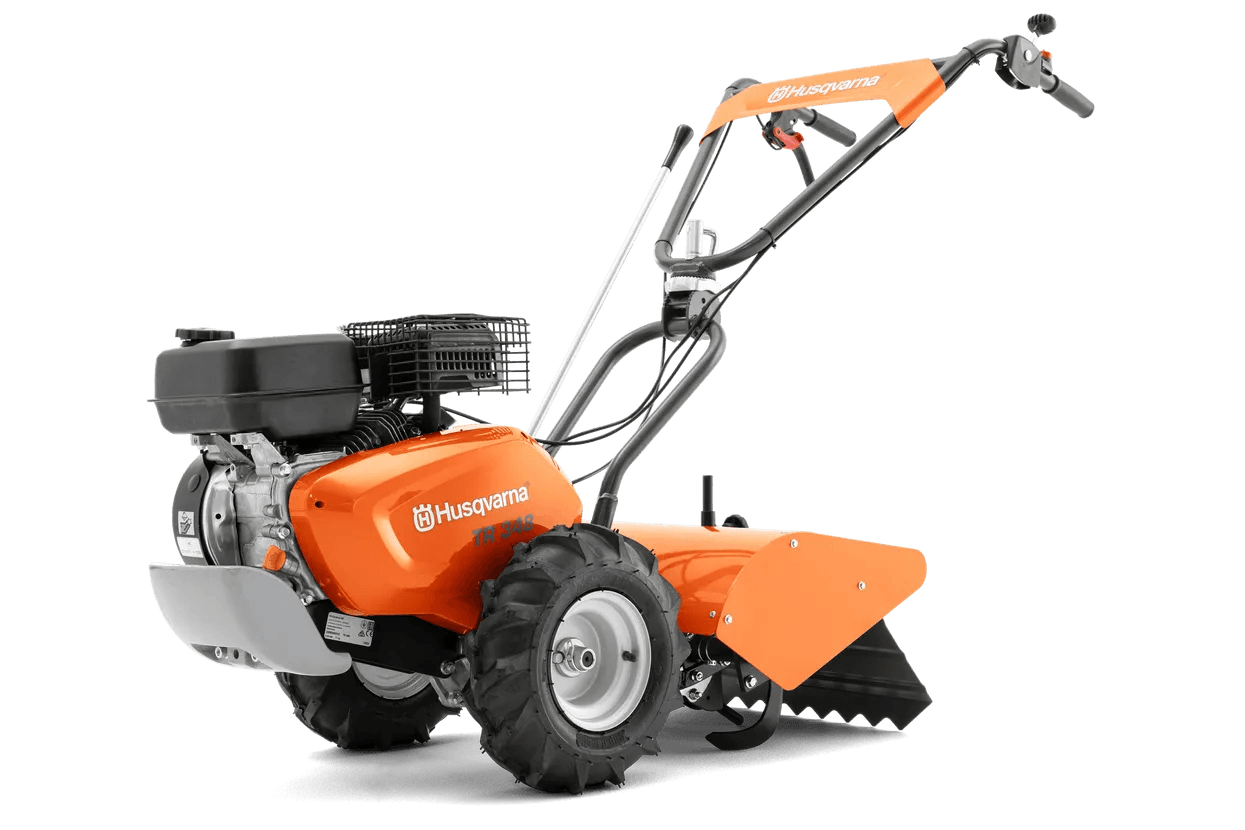

The TR 348 is a light-weighted, compact and easy to use tiller with great manoeuvrability. Equipped with high-quality transmission and Heli coiled tines and 48 cm working width it offers both great performance and durability.
Features
Adjustable handlebar
Adjustable handlebar, both horizontally and vertically, for best working position.
Drag bar
Drag bar for balanced operation
Foldable handlebar
Foldable handlebar for easy storage
Cylinder displacement-208 см³
Net power at preset rpm Energy-4.5 kW
Fuel tank volume (with reserve)-3.6 l
Rotational speed-3300 rpm
Motor/engine manufacturer-Briggs & Stratton
Engine name-950 Series
Exhaust emissions -(CO2 EU V)840.5 g/kWh[1]
Net power at preset rpm Energy-4.5 kW
Fuel tank volume (with reserve)-3.6 l
Rotational speed-3300 rpm
Motor/engine manufacturer-Briggs & Stratton
Engine name-950 Series
Exhaust emissions -(CO2 EU V)840.5 g/kWh[1]
Capacity
Tine diameter-300 mm
Working depth-15 cm
Working width-48 cm
Cultivator typeRear-tine
Number of tines-4
Depth adjustment steps-7
Transmission
Transmission typeChain/Gear
Transmission steps forward-2
Transmission steps reverse-1
Detachable transmission-No
Equipment
Vertically adjustable handlebar-Yes
Horizontally adjustable handlebar-Yes
Foldable handlebar-Yes
Handlebar-mounted gear selection-No
Reverse gearbox-Yes
Drag bar-Yes
Plant guardsNo
Chevron tyresNo
Dimensions
Tyre size-345 mm
Weight-73 kg
Sound and Noise
Sound pressure level at operators ear-84.5 dB(A)
