Description
- Motor/engine manufacturer HQV 10.5 kW@ 2900 rpm, 500cc
- Cutting width, min 94 cm/37"
- Cutting width, max 112 cm/44"
- Transmission type Hydrostatic AWD
Product Description

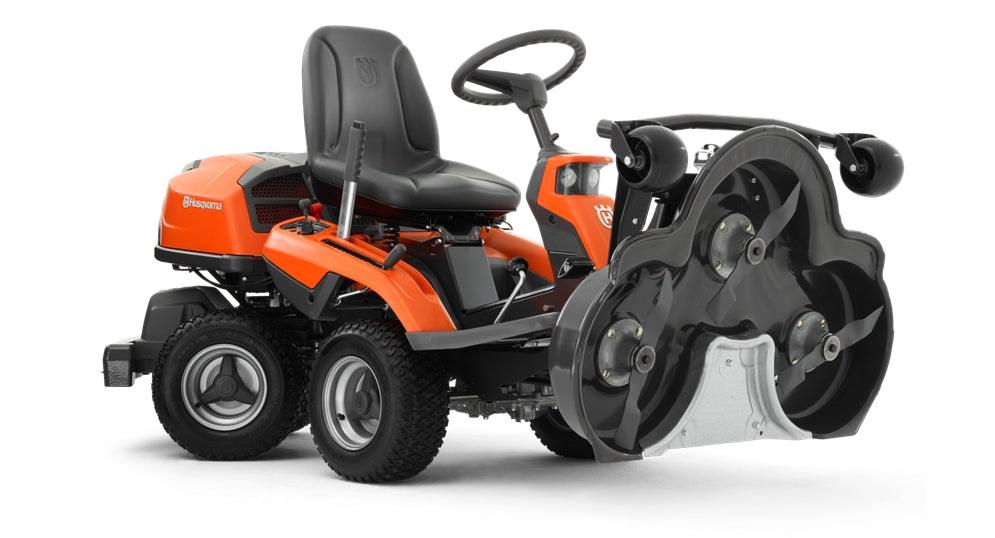

Highly agile and flexible All-Wheel-Drive Rider with easy-access controls, Turn Key Start, dual LED-lights, a softgrip steering wheel with knob. Optional 94, 103 or 112cm Combi cutting decks offering first-class BioClip® (mulching) and rear ejection cutting. Numerous attachments for a wide range of jobs. Equipped with an intuitive display, dual headlights and Bluetooth connectivity with which you easily monitor your rider with the Husqvarna Connect app.
Features
Turn key start
Easy to get operating under any wetather conditions. No choking needed, just turn the key and go.
Dual LED lights for improved visibility, both near and remote.
Dual LED lights for enlarged lighted area and safer operation in darker conditions. Improved visibility, both near and remote.
Unique articulated steering
The unique articulated steering system allows the rear pair of wheels to swing in underneath the machine. The result is superior manoeuvrability with a minimum turning radius at full lock.
HMI Display
The intuitive display communicates with the driver through visual symbols and warning sounds, assists in handling and gives real time data and warnings.
ENGINE
Motor/engine manufacturer
HQV
Engine name
HQV Engine
Net power at preset rpm Energy
10.5 kW
Net power at preset rpm
2900 rpm
Cylinder displacement
500 см³
Cylinders
1
Engine cooling
Air
#Generator
5 A
Power/fuel type
Gasoline
Fuel tank volume (with reserve)
12 l
Engine lubrication type
Full pressure
Oil filter
Yes
Exhaust emissions (CO2 EU V)
794 g/kWh
BATTERY
Battery type
Lead/Acid
Battery capacity
24 Ah
Battery pack weight
15.873 lbs
CUTTING DECK
Uncut circle
30 cm
Cutting width, min
94 cm
Cutting width, max
112 cm
Cutting deck type
Combi ( not included)
Cutting deck material
Steel
Cutting methods
BioClip®/Rear discharge
Cutting height max
75 mm
Cutting height min
25 mm
Blade engagement
Automatic
Blades
3 pcs
Powder-coated cutting deck
Yes
DIMENSIONS
Tyre dimensions, front
170/60-8
Tyre dimensions, rear
170/60-8
Wheelbase
88.7 cm
Ground clearance
85 mm
Base machine, length
202 cm
Base machine, width
89 cm
Base machine, height
115 cm
Weight
224 kg
Gross weight towed
125 kg
DRIVE SYSTEM
Transmission type
Hydrostatic AWD
Transmission manufacturer
Kanzaki
Drive method
Pedal-operated
Speed forward max
9 km/h
Speed forward min
0 km/h
Speed reverse max
9 km/h
Speed reverse min
0 km/h
Transmission model
K574
EQUIPMENT
Hour meter type
Digital with pre-programmed service intervals
Seat material
PU
Seat suspension
Yes
Seat back height
Medium
Foldable seat
Yes
Steering wheel type
Comfort
Parking brake, type
Disc
SOUND AND NOISE
Sound pressure level at operators ear
84 dB(A)
Sound power level, measured
98 dB(A)
Sound power level, guaranteed (LWA)
99 dB(A)
VIBRATION
Vibration level steering wheel
2.5 m/s²
Vibration level seat
0.7 m/s²
