Description
- V-Twin Chokeless Start
- AWD Ensures Traction On Slopes
- 656cm³ HQV Engine
- 9.7kW Power Output
- 25mm - 75 mm Cutting Heights

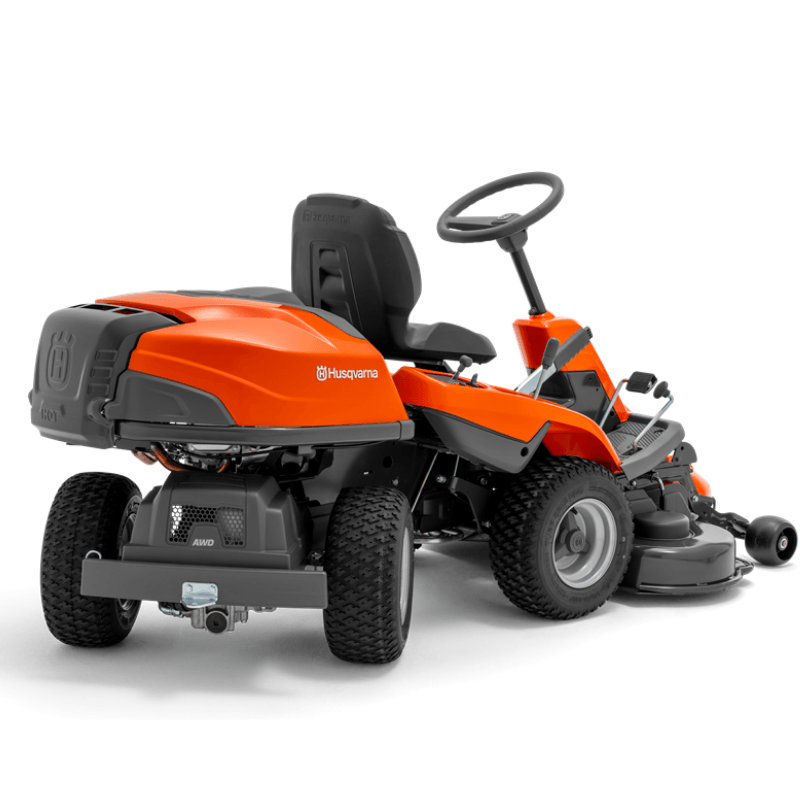

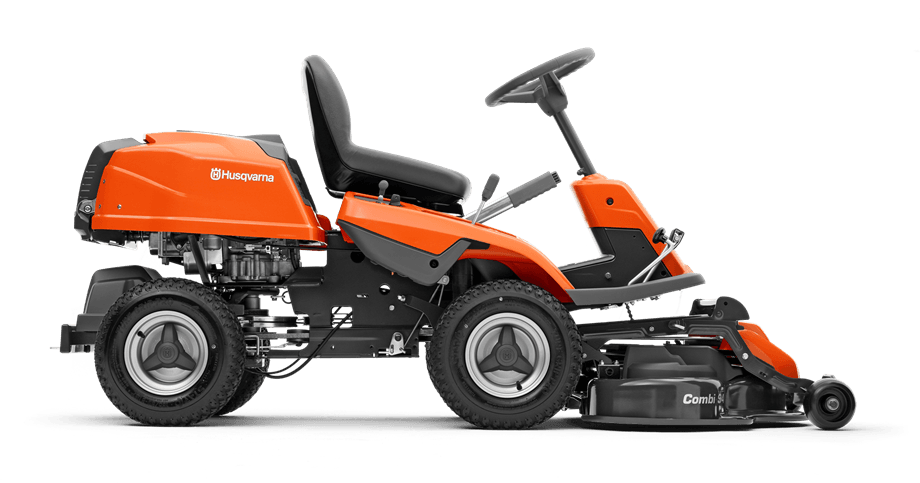

Combining ease of use and excellent handling with power and performance, this All-Wheel Drive Rider with a high-torque V-twin engine is a pleasure to operate and deliver great results. The articulated steering provides manoeuvrability for the really tight turns. Equipped with LED lights and Turn Key Start.
Features:
All-wheel-drive(AWD)
All wheel drive (AWD) ensures traction on uneven, wet and slippery areas and slopes. AWD automatically adjusts the traction on all wheels depending on situation and ground condition.
Turn Key Start
Easy to get operating under any wetather conditions. No choking needed, just turn the key and go.
Front-Mounted Cutting Deck
Front-mounted cutting deck for excellent accessability into corners and under bushes, park benches etc. The three-blade cutting deck offers first-class trimming on both left and right side and gives the same uncut circle diameter regardless of direction.
Combi Cutting Deck
The Combi cutting deck offers the versatility of two different cutting systems. Choose between BioClip® for lawn fertilisation and rear ejection for efficient mowing on areas with higher and rougher grass.
Unique Articulated Steering
The unique articulated steering system allows the rear pair of wheels to swing in underneath the machine. The result is superior manoeuvrability with a minimum turning radius at full lock.
Pivoting Rear Axle
The rear axle is pivoting to get maximum traction on the drive wheels and a smooth ride also on uneven surfaces.
Comfortable Driver's Position
With a Rider you get safety, stability and traction on both flat grounds and hillsides. The Rider's low gravity centre contributes to extra good traction as well as a comfortable.
Pedal-Operated Hydrostatic Transmission
Easy speed and direction control with pedal-operated hydrostatic transmission. Separate pedals for forward and reverse.
Easy-Access Cutting Height Lever
The cutting height lever is easy to reach from the driver’s seat, making it possible to do cutting height changes while mowing.
|
Motor/engine manufacturer |
(HQV engine) |
|
Net power at preset rpm Energy |
9.7 kW |
|
Cylinder displacement |
656 см³ |
|
Cylinders |
2 |
|
Engine cooling |
Air |
|
#Generator |
16 A |
|
Power/fuel type |
Gasoline |
|
Fuel tank volume (with reserve) |
12 l |
|
Engine lubrication type |
Full pressure |
|
Oil filter |
yes |
|
Exhaust emissions (CO2 EU V) |
830 g/kWh |
