Description
- Engine Power Output- 17.8kW @ 3100rpm
- Engine Type- Kubota D1105 Diesel
- Transmission- Hydrostatic AWD
- Displacement-1123cc
- Cutting width min- 132cm/52"
- Cutting width max- 180cm/71"

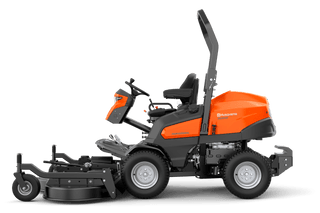

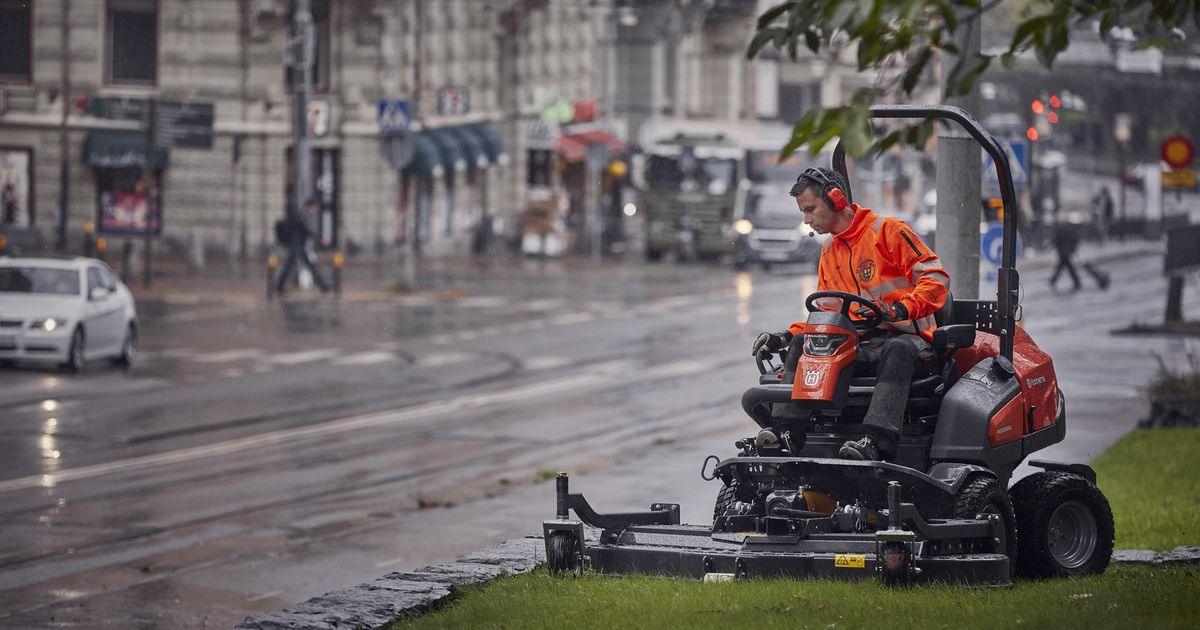

The Husqvarna P 535HX Hybrid Front Mower is ideal for keeping larger lawns and outdoor greenspaces looking pristine, whilst working efficiently to save operators valuable time.
The ergonomic driver interface with modern graphic displays and easy-access controls provides a comfortable ride during long working hours and a built-in connectivity module allows you to connect with Husqvarna Fleet Services™. The P 535HX can be equipped with high-capacity cutting decks up to 180cm, providing an excellent result and efficient mowing in any terrain.
Thanks to the 20" wheels, all-wheel drive and articulated steering it is easy to manoeuvre even in rough terrain and complex areas. Two electric motors power the wheel drive axles, while the PTO, hydraulics and electric generator are powered by a diesel engine.
Commercial-grade components and ease of service make for uncompromised durability and maximum uptime. The incorporation of dual-energy sources combined with high efficiency in the hybrid system enables extreme power for the P 535HX yet maintained in a compact and agile format. The power train reduces the vehicle’s overall fuel consumption and it's CO₂ footprint and operational cost.
| Engine | |
| Motor/engine manufacturer | Kubota |
|---|---|
| Engine name | D1105 |
| Net power at preset rpm Energy | 17.8 kW |
| Cylinder displacement | 1,123 cm³ |
| Cylinders | 3 |
| Engine cooling | Liquid |
| Power/fuel type | Hybrid Li-ion Battery/Diesel |
| Engine lubrication type | Pressure with Oilfilter |
| Oil filter | Yes |
| Cutting deck | |
| Uncut circle | 58 cm |
|---|---|
| Cutting width, min-max | 132-180 cm |
| Cutting height, min-max | 30-112 mm |
| Blade engagement | Electric clutch |
| Dimensions | |
| Tyre dimensions, front | 20x10.00-10 |
|---|---|
| Tyre dimensions, rear | 20x10.00-10 |
| Wheelbase | 106 cm |
| Ground clearance | 134 mm |
| Base machine, height | 134 cm |
| Base machine, length | 209 cm |
| Base machine, width | 116 cm |
| Weight (excl. cutting equipment) | 790 kg |
| Drive System | |
| Transmission type | Electric |
|---|---|
| Transmission manufacturer, rear | Benevelli |
| Transmission manufacturer, front | Benevelli |
| Transmission model, rear | TX2 |
| Transmission model, front | TX2 |
| Drive method | Dual pedal-operation |
| Speed forward max | 19.5 km/h |
| Speed reverse max | 11 km/h |
| Equipment | |
| Hour meter type | Digital with pre-programmed service intervals |
|---|---|
| Seat material | Vinyl |
| Seat suspension | Yes |
| Seat back height | High |
| Foldable seat | Yes |
| Seat type | Full suspension, arm rests |
| Steering wheel type | Professional |
| Parking brake, type | Drum |
