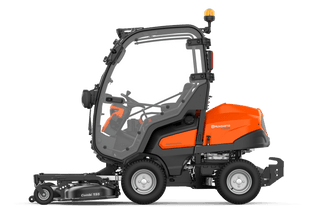

HUSQVARNA P 525DX cabin RideOn Mower with 155cm Combi deck (hydraulic lift)

• Motor/engine manufacturer Kubota D1105

• Net power at preset rpm Energy 18.7 kW

• Cutting width, min 132 cm/52"

• Cutting width, max 155 cm/61"

• Motor/engine model Diesel horisontal axle

• Cylinder displacement 1123 cm³

• Cylinders 3

High-capacity diesel-powered front mower with factory assembled cabin, offering unbeatable manoeuvrability and productivity in complex and narrow environments as well as in larger-sized areas all year round. The commercial graded transmission gives uncompromised traction and slope stability. The machine's compact size and high transport speed makes it suitable both for stationary and mobile application for municipalities, contractors, housing agencies etc. Thanks to the front-mounted cutting deck the operator has perfect overview of the working area. This means optimised trimming ability as well as accessibility under benches, bushes etc. Long-life components for solid durability and less downtime. Attachments such as utility bucket, broom, folding plough and cabin give increased productivity all-year round. TThe cabin is anti vibrated from the chassi, resulting in significantly lowered vibration and noise. The spacious cabin offers doors of glass, front window up on roof and high specified Grammer seat, althogheter increasing driver's comfort all year round. Fully equipped with hydraulic kit, LED work lights, road lights, counter weight, heater, beacon light etc. The cabin is easily removed from the chassi, in case the cabin is not needed during summer time. ROPS structure is integrated in the cabin.

FEATURES

Want to take a closer look? Learn more about the product in depth by exploring its design and features.

Unique articulated steering

The unique articulated steering system allows the rear pair of wheels to swing in underneath the machine. The result is superior manoeuvrability with a minimum turning radius at full lock.

All-Wheel-Drive (AWD)

All-Wheel-Drive (AWD) ensures traction on uneven, wet and slippery areas and slopes. AWD automatically adjusts the traction on all wheels depending on situation and ground condition.

Commercial graded transmission

High-specified variable piston pumps with separate gear boxes for front and rear axle.

Compact design

The compact size together with the unique articulated steering makes it easy to manoeuvre the machine in narrow spaces and tricky areas.

• Hillside driving performance
• Versatile usage
• Trimming ability
• Shaft PTO
• Quick coupling
• Kubota diesel engine
• Ergonomic operation
• Hydraulic power steering
• Mowing accessibility
• Easy-access controls
• Easy access
• Greasable mandrels
• Off-set cutting deck
• Combi deck
• Service position
• Durable ladder frame
• Cast iron rear wagon
• Heavy-duty deck design
• Four large wheels

Hillside driving performance

The machine’s low center of gravity in combination with the high-performing AWD-system gives excellent slope and hillside stability.

Engine

Motor/engine manufacturer

Kubota

Engine name

D1105

Motor/engine model

Diesel horisontal axle

Cylinder displacement

1123 cm³

Cylinders

3

Net power at preset rpm Energy

18.7 kW

Power/fuel type

Diesel

Fuel tank volume

25 l

Engine cooling

Liquid

Engine lubrication type

Pressure with Oilfilter

Oil type

SAE 10w40

Oil filter

Yes

Exhaust emissions (CO2 EU V)

1047 g/kWh

Drive system

Transmission type

Hydrostatic AWD

Transmission manufacturer

Kanzaki

Transmission model

KTM 23

Drive method

Pedal-operated

Speed forward max

18 km/h

Speed reverse max

11 km/h

Cutting deck

Cutting width, min-max

132-155 cm ( supplied with 155cm Combi deck -hydraulic lift)

Deck thickness

4.5 mm

Cutting height steps

7

Uncut circle

58 cm

Blade engagement

Electric clutch

Cutting Height, min-max

30-112 mm

Equipment

Power steering

Yes

All-Wheel Drive (AWD)

Yes

Optional cutting decks

Combi 132, Combi 155

Hydraulic equipment lift

Yes

Pivoting rear axle

Yes

Seat type

Full suspension, arm rests

Seat manufacturer

Grammer

Seat material

Vinyl

Seat suspension

Yes

Seat back height

High

Hinged armrests

Standard

Oil cooler

Yes

Service position

Yes

Headlights

Yes

Quick connection

Yes

Hour meter type

Digital

12V outlet

Yes

Panel led lamps

Hour meter, Oil pressure, PTO, Charge, Parking brake, Start/Glow

Cup holder

No

Cargo holder

No

Dimensions

Base machine, length

226.9 cm

Base machine, width

125.1 cm

Base machine, height

200.8 cm

Length incl Combi 155

289.2 cm

Ground clearance

140 mm

Wheelbase

106 cm

Tyre size, front Diameter

20 in

Wheel/rim size, front Diameter

10 in

Weight

907 kg

Sound and Noise

Sound power level, measured

105 dB(A)

Sound power level, guaranteed (LWA)

105 dB(A)

Sound level

105 dB(A)

Vibration

Vibration level steering wheel

1.7 m/s²

Vibration level seat

0.7 m/s²
