Description
- Engine Power Output- 13.9kW @ 3000rpm
- Engine Type- FS691V, FS Series V-Twin
- Transmission- Hydrostatic AWD
- Displacement-726cc
- Cutting width min- 112cm/44"
- Cutting width max- 122cm/48"
Product Description
Compact, efficient front mower featuring Electronic Fuel Injection for reduced fuel consumption, enhanced power and torque without engine drop even in tough conditions.
Turn key start means no choke needed: just switch on and go. Articulated power steering helps with tight turns, while AWD ensures traction in any conditions. Fully floating cutting deck, easy access cutting height lever and headlights also help make mowing easier, while full compatibility with all P524 accessories allows year-round productivity.
Suitable for sport clubs and hotels as well as housing agencies and contractors who want a versatile, compact, highly manoeuvrable front mower.The P 524EFi is delivered deckless and can be fitted with 112 and 122 cm Combi cutting decks.

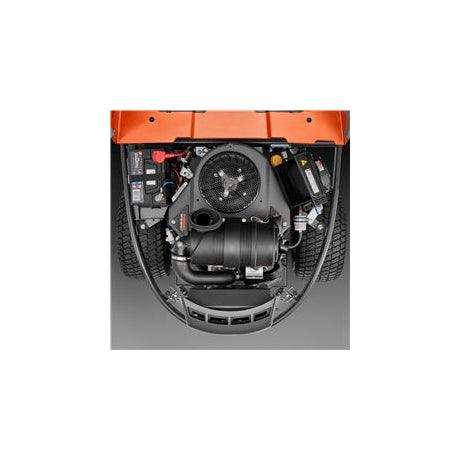

Engine manufacturer- Kawasaki
Engine name- FX Series V-Twin
Engine type- FX691V
Cylinder displacement-726 cm³
Cylinders- 2
Engine cooling- Air
Battery- 12 V
Battery- 24 Ah
Fuel Type- Petrol
Fuel tank volume (with reserve)- 22 l
Engine lubrication type- Full pressure
Oil type- SAE10W40
Oil filter- Yes
Net power at preset rpm Energy- 13.9 kW
Net power at preset rpm- 3000 rpm
Uncut circle- 50 cm
Cutting width, min- 112 cm
Cutting width, max- 122 cm
Cutting deck type- Combi
Cutting deck material- Steel
Deck thickness- 4 mm
Cutting methods- Mulching/Rear discharge
Cutting height steps- 7 pcs
Blade engagement -Electric clutch
Blades- 3 pcs
Anti-scalp wheels- 3
Powder-coated cutting deck- Yes
Cutting height max- 75 mm
Cutting height min -25 mm
Wheelbase- 100 cm
Ground clearance- 115 mm
Base machine, length- 204.3 cm
Base machine, width- 97.7 cm
Weight- 385 kg
Base machine, height- 115.3 cm
Weight incl Combi -112 440 kg
Weight incl Combi -122 449 kg
Transmission type- Hydrostatic AWD
Transmission manufacturer- Kanzaki
Transmission model- KTM 23
Drive method- Pedal-operated
Speed forward max- 13 km/h
