Product description

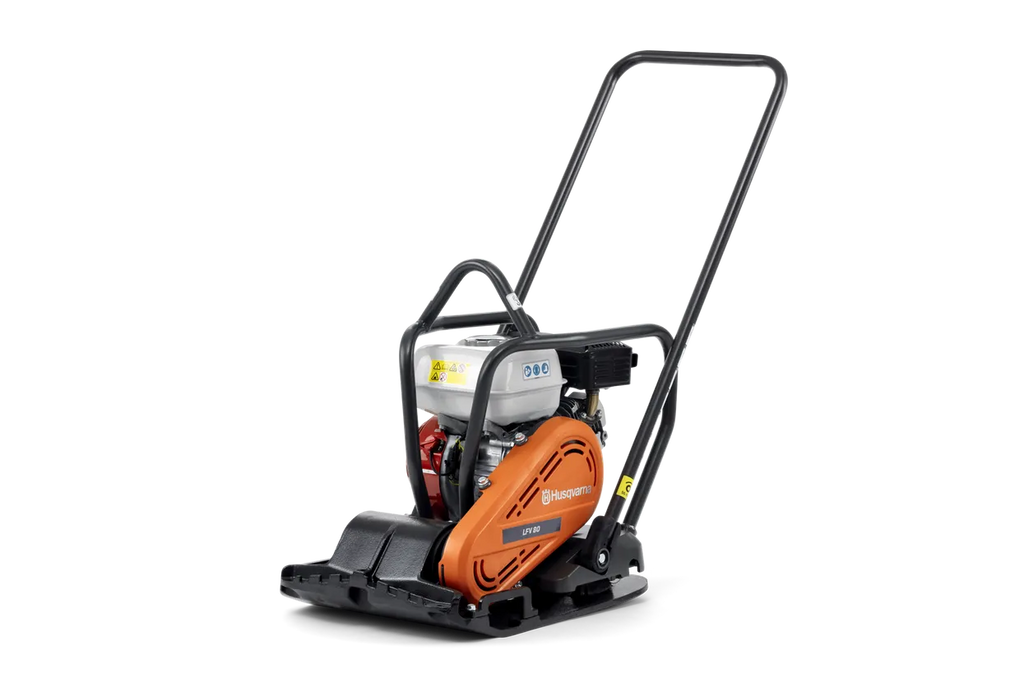

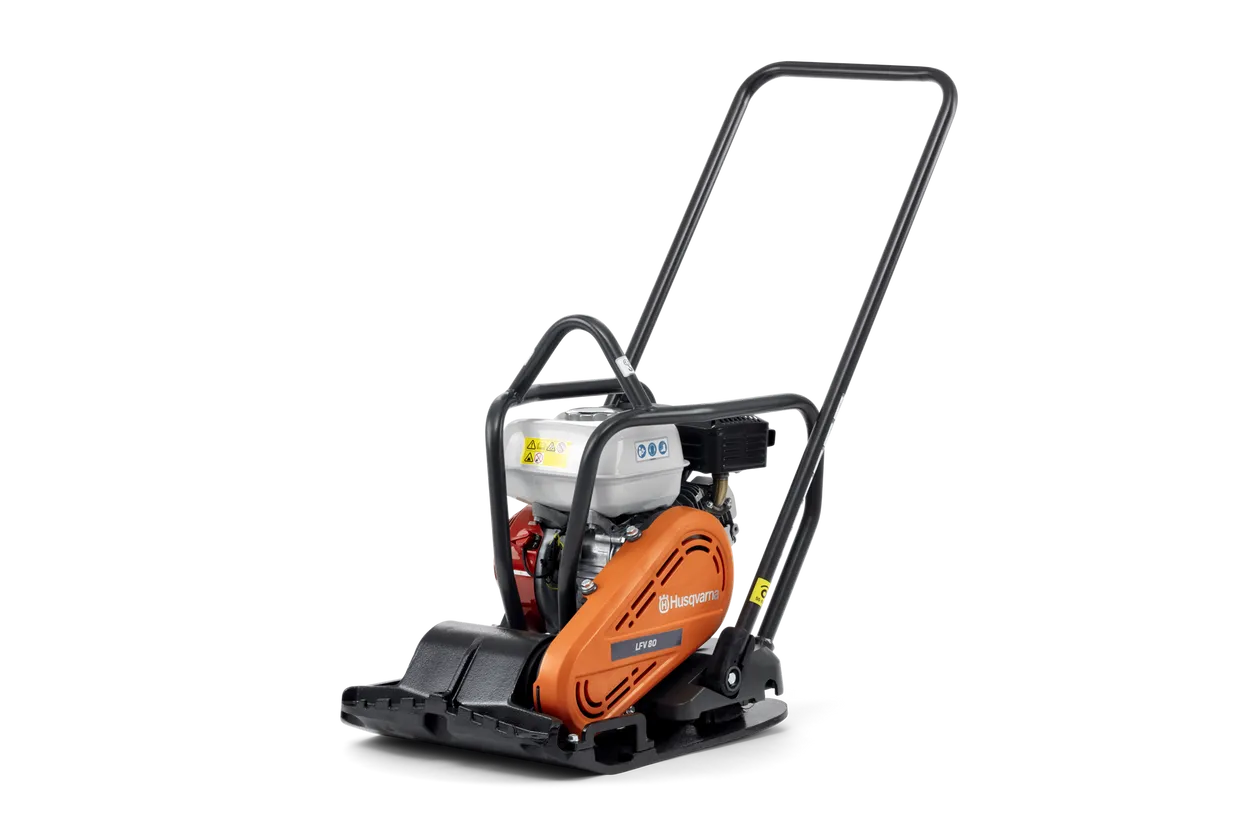

Husqvarna 970455501 LFV80 Vibratory Plate Gasoline Honda 420 mm 19 kN
Special Features
- The LFV 80 a fast-acting forward vibrating plate ideal for compacting granular soil of low to medium thickness.
- Optimized speed and power for fast and easy compaction with high productivity.
Advantages
- Durable design: For the right power and speed to get the job done
- Reliable: Easy to operate and requires little maintenance.
- Applications with asphalt possible: An optional water tank can be added for applications with asphalt.
- Easy handling: Thanks to the lifting height and the optional wheel set or additional fork lifts, transporting the vibratory plate is easy.
- Pavement Protection: The optional, easy-to-attach asphalt sealant protects the paving blocks from scratches and cracks.
Technical data
- Engine/engine model(new) GX160
- Power (According to motor manufacturer's specification) 3.6 kW
- Starter Recoil
- Exhaust emissions (CO2 EU V) 757 g/kWh
- Drive Petrol
- Compaction application Asphalt and soil
- Frequency, Hz 95 Hz
- Centrifugal force, N 19 kN
- Speed 33 m/min
- Dimensions Plate width (mm) 420 mm
- Product dimension, length 926 mm
- Product dimension, width 420 mm
- Product dimension, height 942 mm
- Weight 81 kg
- Packing length 620 mm
- Packing width 850 mm
- Packing height 840 mm
- Article gross weight 90,500g
- Sound pressure level (LWA) 105 dB(A)
- Sound pressure level at operator's ear 90 dB(A)
- Vibration on left handle 7 m/s²
