Hydrostatic drives gives greatest accuracy and a smooth, stepless speed control
Description
- Powered by Honda 4 stroke OHC V twin engine, 17HP
- Cutting Deck - 92cm / 36"
- Hydrostatic transmission
- Grass bag capacity 280 ltrs.
- Mulching kit- optional
- Tow hitch- optional
Variable Hydrostatic drive transmission
Cutting height adjustment
7 positions are available to adjust the cut between 30-80mm.

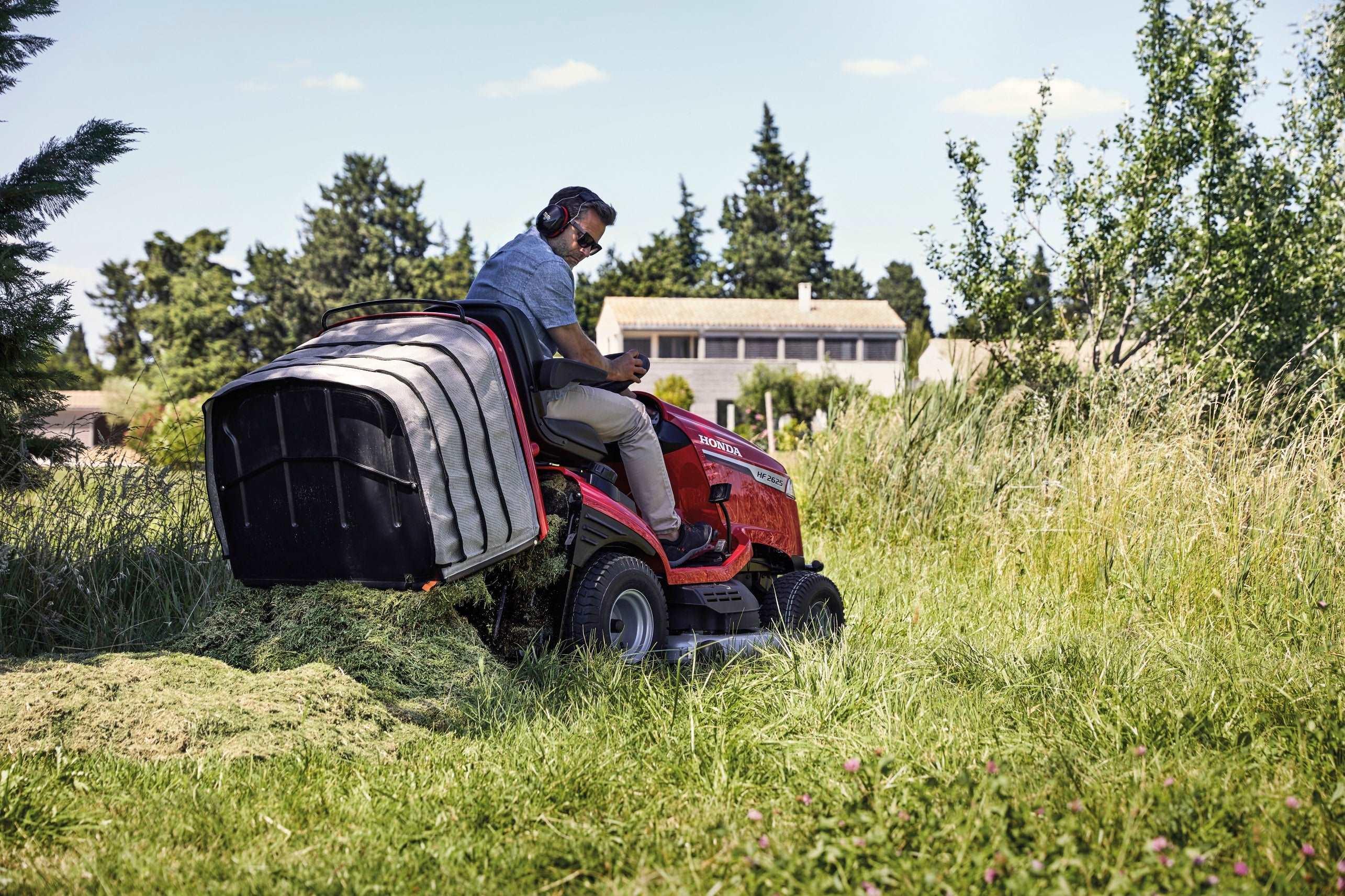

Large grass bag capacity
The HF2317 has a 280 litre grass bag and emptying is made easy with a touch of a button.
Innovation at every turn
Our Lawn tractors make grass maintenance effortless. Built to last, they come equipped with 4-stroke V-twin engines that deliver top-notch performance and cleaner emissions – they’re so easy to start and cheaper to run.
They’re simple and enjoyable to drive, and have a small turning radius – ideal for manoeuvring around garden obstacles. In fact, you’re likely to forget you’re doing garden chores at all.
A Honda Lawn tractor comes with intelligent features as standard, which make using them effortless and effective. What’s more, the range also has a selection of useful options to choose from. So whatever your garden needs, we’ve got the right set-up for you.

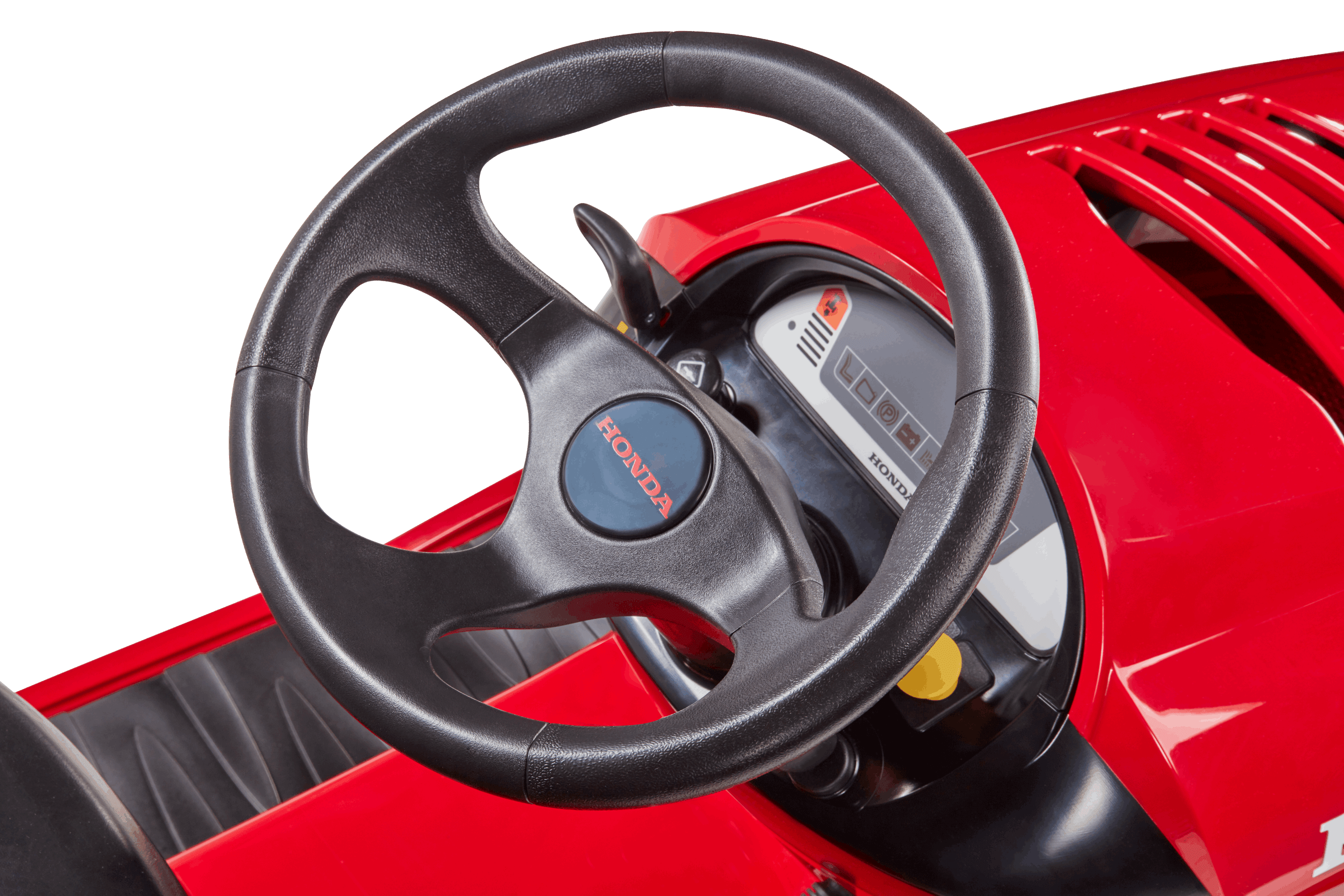

Intelligence built-in
The smart diagnostic LED dashboard tells you everything you need to know. Our Lawn tractors are clever things. They come fitted with a full LED dashboard that shows the driver key diagnostic information about the machine. As the brains of the operation it offers better safety, control, and improved performance from the tractor; ensuring it’s running at its best.
Total control
On our Lawn tractor, you can turn the cutting deck on and off as you please, without having to restart the engine; it’s all down to the electromagnetic blade clutch, which combines cutting and braking into one electronically controlled system. This means you don’t have to cut everywhere you drive.

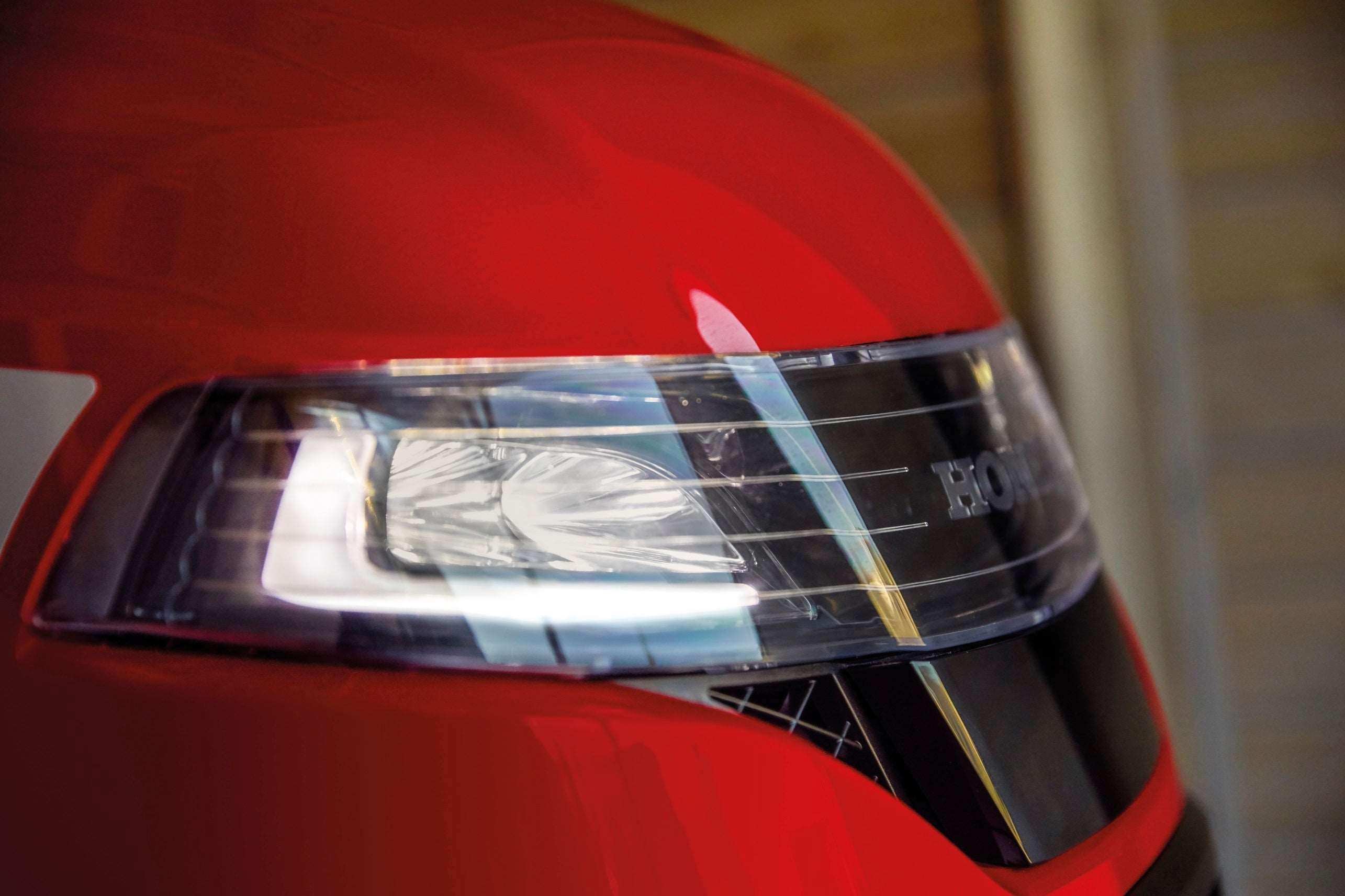

Automatic Light
And that’s not all – most of our Lawn tractors come with powerful headlights for all-hours mowing, making sure you don’t end up cutting next-door’s lawn too! They even have a sensor that detects light levels for automatic activation, which makes it easy to park your mower when you have finished.
What cut?
Depending on your preference, your grass can need to be cut to different lengths. Handy, then, that our Lawn tractors have seven different height adjustments, so you can give your lawn the treatment it needs. So whether you’re going for a putting green crop or something longer, you know you can get the length just right without breaking a sweat using the ergonomic, easy reach lever.
When trimming your grass, you can choose mulching, which drops the clippings straight on to the ground. But don’t worry, that’s a good thing – this finely cut grass, known as mulch, is a simple and economical way to fertilise your lawn. So there’ll be less time working the grass, and more time to enjoy your very green garden.
Specifications
Blade brake clutch | Electromagnetic |
Optiflow | Yes |
Grass bag dumping | Manual |
Positions and cutting | 7 |
Noise value - sound power level (dB(A)) | 100 |
Mulching | Optional |
Rear deflector | Optional |
Tow hitch | Optional |
Length (mm) | 2440 |
Width (mm) | 970 |
Height (mm) | 1230 |
Dry weight (kg) | 218 |
Cutter deck size (cm) | 92 |
Number of blades | 2 |
Synchro or Asynchro | Asynchro |
Height adjustment (mm) | 29-80 |
Grass bag capacity (Litres) | 280 |
Engine | 4-stroke OHC V-twin |
Engine displacement (cc) | 530 |
Engine model | GCV530 |
Engine Rated Power (kW/rpm) | 9.7/2,800 |
Fuel tank capacity (Litres) | 5.4 |
Engine oil capacity (Litres) | 1.3 |
Transmission type | Variable: Hydrostatic |
Front tyres (diameter x width - rim) (inches) | 13 x 5.00 - 6 |
Rear tyres (diameter x width - rim) (inches) | 18 x 8.50 - 8 |
Turning radius (m) | 1.8 |
