Description
Functions
Extra mobile. Extra stable.

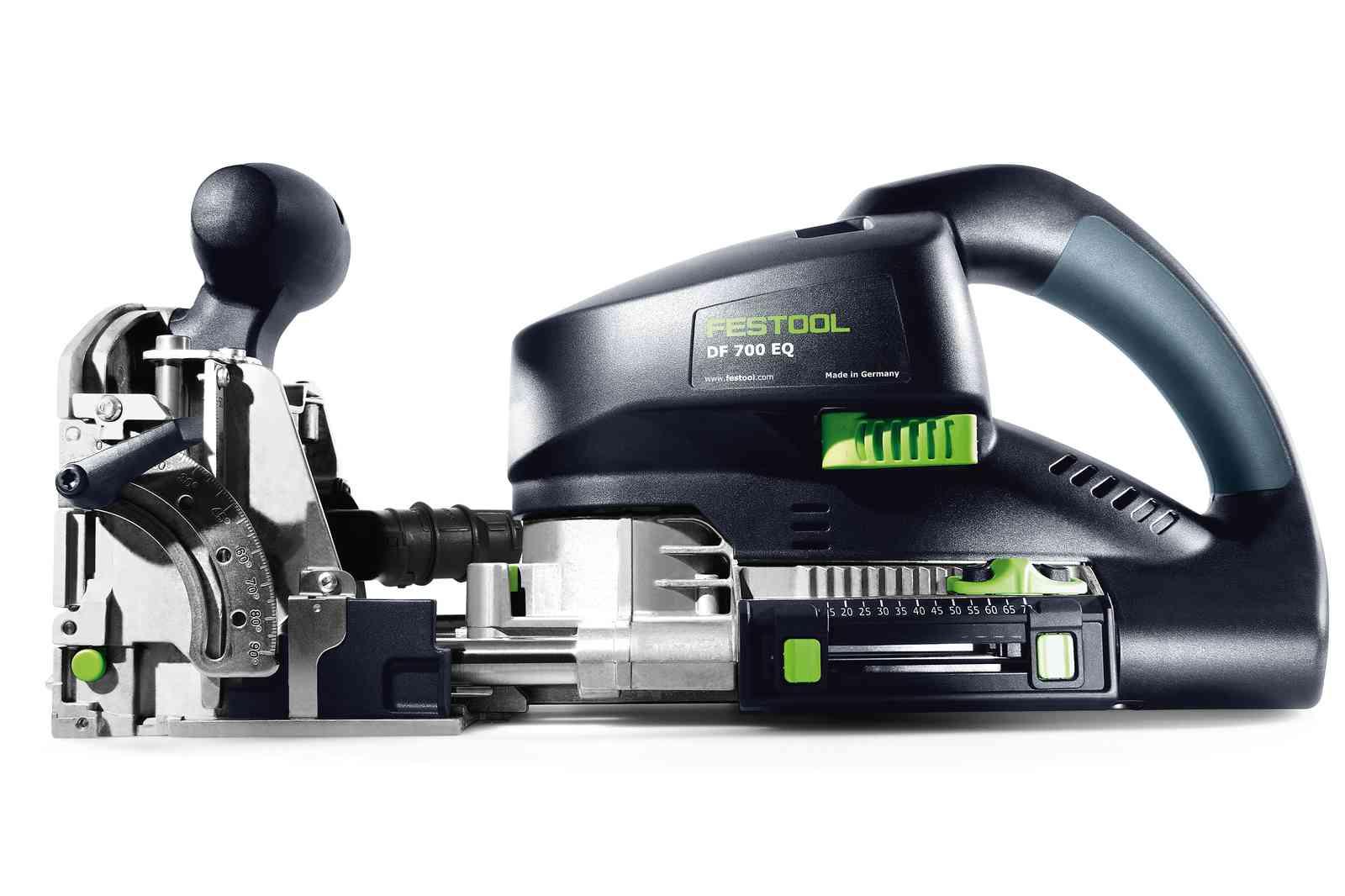

Comes to the workpiece and not vice versa: DOMINO XL. Quick, simple, precise and extremely stable - with measurably shorter tooling times and up to 50% time-saving in comparison to stationary machines. The DOMINO XL is therefore ideally suited for furniture and door construction and solid wood joints.
- Patented routing principle unique to hand-held machines for accurate work with no kickbacks
- Stops that are quick and easy to adjust, for accurate results
- Maximum stability of joints up to a DOMINO size of 14 x 140 mm
- Saves more time compared to a stationary machine
- System accessories compatible with both DOMINO jointers
Usages
Main applications
- Solid wood furniture in frame and tunnel design
- Frame construction of house doors and interior doors
- Manufacture of tables and chairs
- Creation of stable mitre joints
- Folded and profiled door frames in furniture construction
- Connection of wide cornices (e.g. plates)
- Frame and stand constructions in non-supported timber structure (exterior and interior area)
Power consumption- 720 W
Idle engine speed - 21 000 min⁻¹
Depth stop for routing depth -15 - 70 mm
Max. routing depth -70.00 mm
DOMINO slot cutter dia. -8, 10, 12, 14 mm
Routing height adjustment -10 - 50 mm
Mitre routing -0 - 90 °
Dust extraction connection dia.-27 mm
Weight -5.20 kg
Drive type -Mains
