Description
More precise joints.

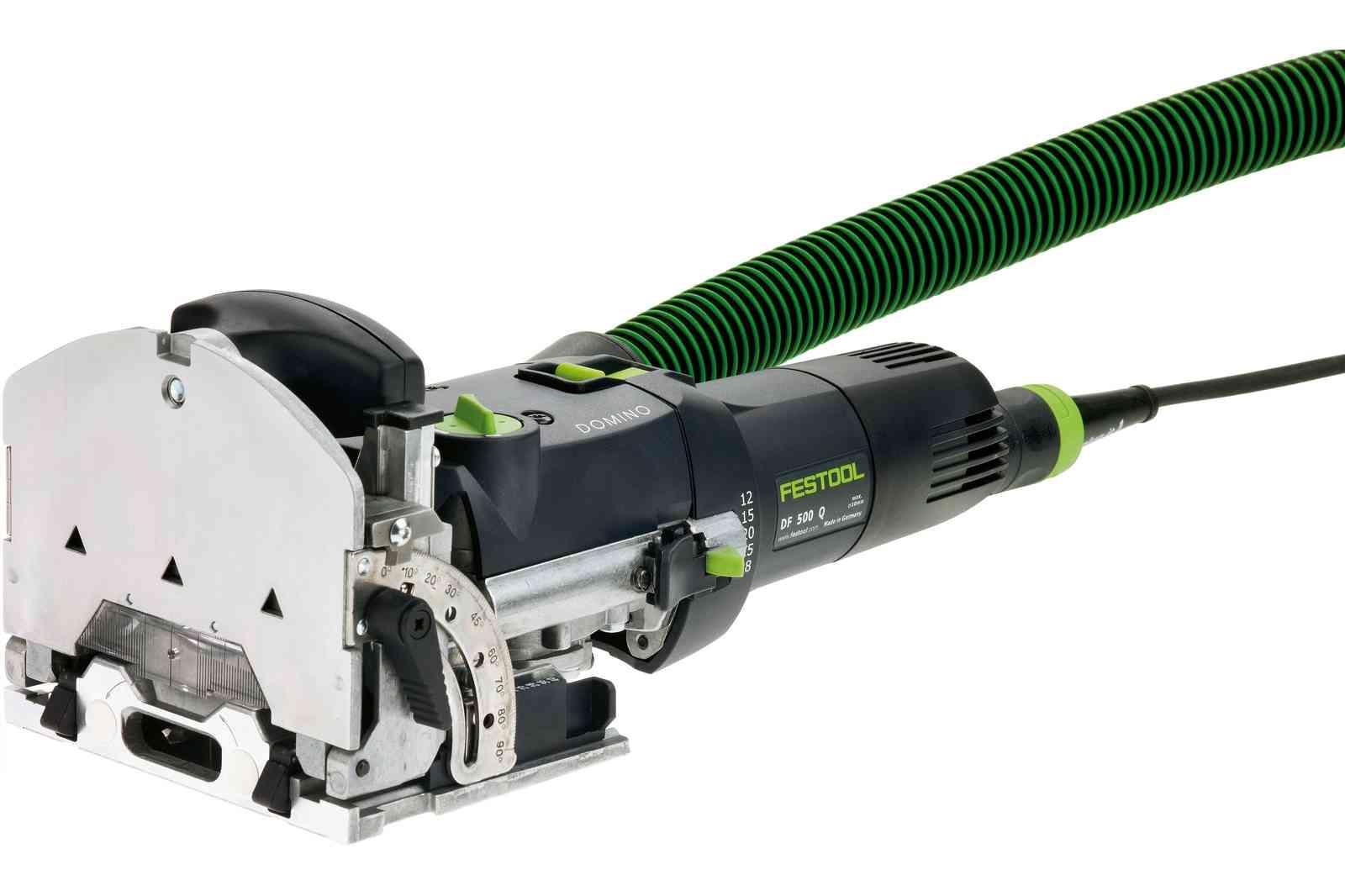

Oval shape, larger glued area, more stability. The DOMINO system unites the precision of a round dowel with the flexibility of a traditional flat dowel – the perfect solution for panel joints. The system consists of the DF 500 dowel jointer, DOMINOs in different sizes and a wide range of accessories for special applications. The result: extremely strong, invisible joints. And DOMINO can do much more: rack joints, frame joints, drawer joints, etc.
- Patented routing principle unique to hand-held machines for accurate work with no kickbacks
- Stops that are quick and easy to adjust, for accurate results
- Rotation-proof joint with DOMINO dowels providing maximum stability
- System accessories compatible with both DOMINO jointers
- Varied use with dowel sizes from 4 x 20 mm to 10 x 50 mm
Main applications
- Furniture manufacture
- Shopfitting/Interior fitting
- Window construction
- Exhibition stand construction
- For panel joins
- For frame and rack joints
Power consumption 420 W
Idle engine speed 25 500 min⁻¹
Depth stop for routing depth 12, 15, 20, 25, 28 mm
Max. routing depth 28.00 mm
DOMINO slot cutter dia. 4, 5, 6, 8, 10 mm
Routing height adjustment 5 - 30 mm
Mitre routing 0 - 90 °
Dust extraction connection dia. 27 mm
Weight 3.20 kg
Drive type Mains
