Powered by TWIN-CYLINDER STIGA ST 650 ENGINE, 21HP
Cutting Deck - 102cm/ 40"
Hydrostatic transmission
Grass bag capacity 300 ltrs.
Mulching kit- optional

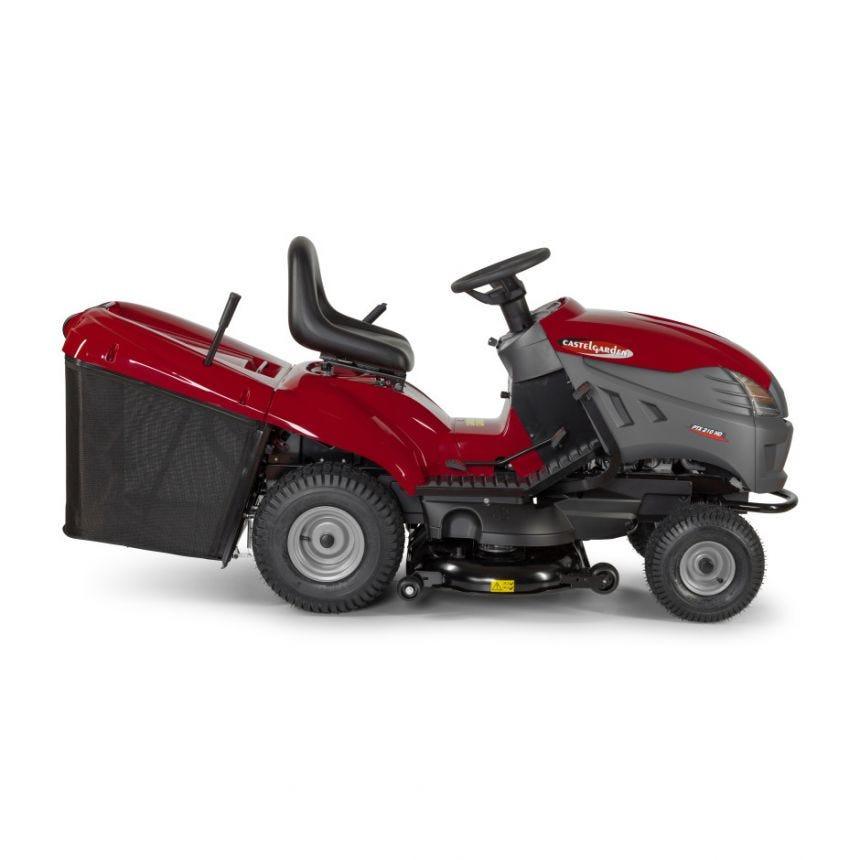

Lawn tractor with a 300 L collector bag and 102 cm cutting deck, suitable to cut grass in very big gardens. Powered by a twin-cylinder engine. Pedal-operated hydrostatic drive for easy speed management. Electromagnetic blade engagement clutch for effortless blade management.
The Castelgarden PTX210 HD lawn tractor is made for collecting big quantities of cut grass is powered by a STIGA ST 650 Twin-cylinder engine.

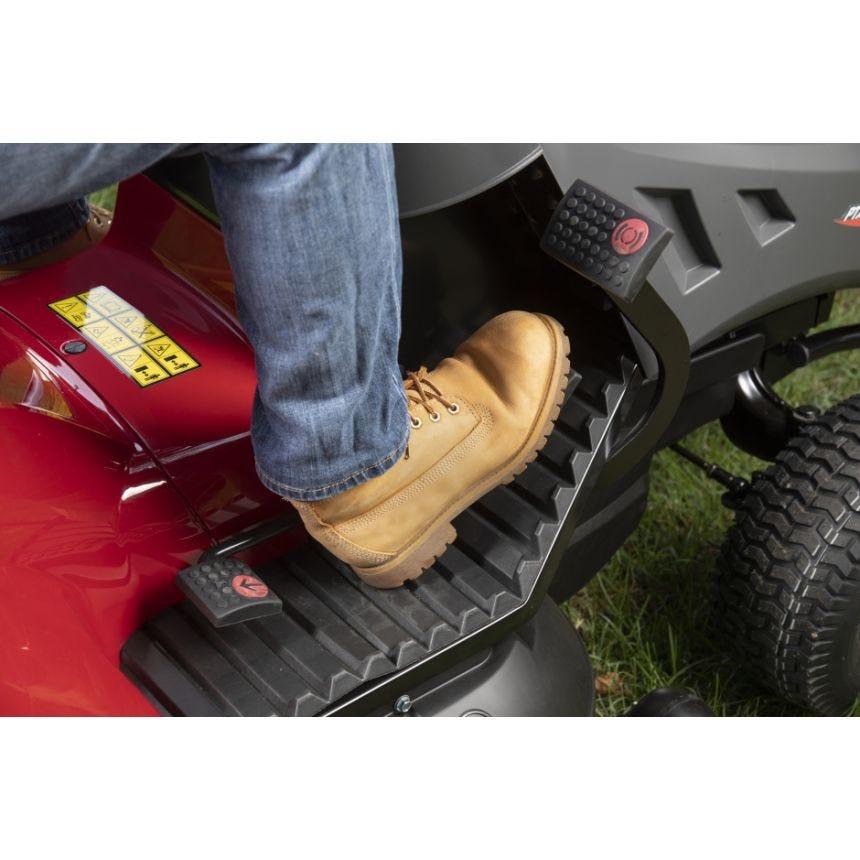

The pedal-operated hydrostatic transmission allows an easier and stress-less speed management.

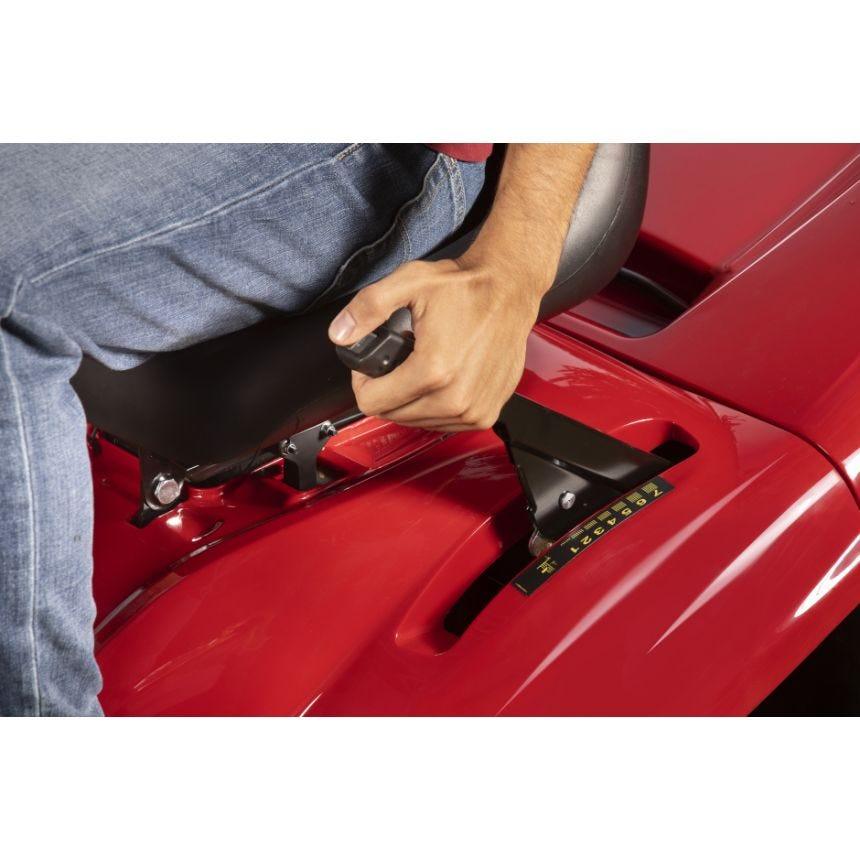

The 102 cm cutting deck is equipped with anti-scalp wheels. The cutting height can be adjusted to 7 different settings, ranging from 30 to 90 mm, to better adapt any grass condition. The blades are engaged via an electromagnetic clutch, without any effort and without having to push or pull any lever.
The grass collector can hold up to 300 litres of clippings, so to ensure long cutting sessions without any need of stopping and emptying the bag. The ergonomically designed seat and soft-grip steering wheel offer extra comfort. The battery charger and mulching kit are sold separately.
| Cutting width |
102 cm |
| Reverse mowing |
Yes |
| Blade rotation |
Timed |
| Cutting height adjustment |
Manual with lever |
| Cutting height positions |
7 positions |
| Cutting height range |
30 - 90 mm |
| Number of blades |
2 |
| Blade type |
Winged |
| Additional cutting method |
Rear discharge, Mulching |
| Blade engagement type |
Electric |
| Minimum uncut radius |
96 cm |
| Cutting method |
Collecting |
| Engine Brand |
STIGA |
| Engine model |
ST 650 Twin Powered by STIGA |
| Displacement |
635 cm³ |
| Engine rotation speed |
2400 rpm |
| Battery Voltage |
12 V |
| Choke |
Manual |
| Engine cooling |
Air |
| Fuel tank capacity |
7 l |
| Maximum working area |
5500 |
| Battery capacity |
18 Ah |
| Power source |
Petrol |
| Power |
10.6 kW |
| Traction |
Rear-wheel drive |
| Collector emptying |
Manual |
| Collector capacity |
300 l |
| Steering wheel |
Castelgarden ergonomic with soft grip |
| Seat type |
Castelgarden smart with mid back support |
| Seat adjustment |
Screws |
| Dashboard |
Yes with LED |
| Front wheel size |
15x6.00-6 |
| Rear wheel size |
18x8.50-8 |
| Headlights |
Conventional |
| Bumper |
Yes |
| Washing link |
Yes |
| Collector type |
Textile |
| Pivoting front axle |
Yes |
| Antiscalp wheels |
4 |
| Safety system |
Seat with Safety Contact Breaker |
| Mulching kit |
Optional |
| Battery charger |
Optional |
| Trailer hitch kit |
Optional |
| Pack weight |
275 kg |
| Product length |
2550 mm |
| Product width |
1060 mm |
| Product height |
1310 mm |
| Product weight |
229 kg |
