Description
Product Description & Features
- Extreme cutting smoothness because of innovative and maintenance free gliding system
- Integrated dual line laser supports accurate cuts
- High vertical and horizontal cutting capacity
- Top Precision Best for Wood - saw blade part of standard delivery
- Quality components and effective dust control make seeing the cut line easy every time
- Robust construction, i.e., does not need to be adjusted during regular use
- Kerf adjustment (width of lines) according to thickness of sawblade used
- Eliminates rails to save up to 30 cm workspace; work right up against a wall in hallways or workshop
- All mitre and bevel adjustments are from the front of the tool, there is no need to reach behind the saw
- Efficient dust extraction due to optimised suction spouts
- Pull-out material supports integrated on the right and left with integrated length stop
- Integrated carrying handle for easy transport

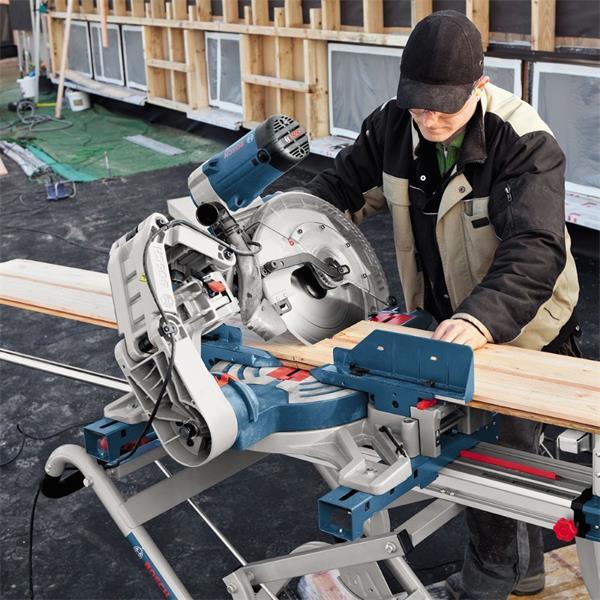

BOSCH GCM 12 GDL AXIAL GLIDE SYSTEM
- Smooth Glide Action - Impermeable sealed bearings provide infinitely smooth and effortless blade travel, no matter the application, material or work environment, for the life of the tool
- Precise geometrical interaction with system components including long-life high precision machined fences, detents, mitre/bevel settings, etc
- Zero-Maintenance Guarantee - Robust cast aluminium arm and sealed bearings will never require maintenance
Technical Specification
- Power (W): 2000
- Motor Speed: 3,800
- Mitre angle: (L/R) 52° / 60°
- Bevel Angle: (L/R) 4r 14r
- Laser: Yes
- Trench cutting: Yes
- Soft-start: Yes
- Variable Speed Control: Yes
- Motor break: Yes
- Pull system: Arial Glide System Rails
- 0° Mitre / 0° Bevel: 104/110 x 341 mm* (*110mm with spacers)
- 45° Mitre / 0° Bevel: 104/110 x 240 mm* (*110mm with spacers)
- 0° Mitre / 45° Bevel 51 x 341 mm
- 45° Mitre / 45° Bevel 51 x 240 mm
- Sawblade diameter: 305
- Number of teeth: 72
- Dimensions (L D H): 790/565/610 mm
- Weight (kg): 32.1
- 1x Bosch GCM 12 GDL Mitre Saw
- 1x Insert Plate (1609B02375)
- 1x Internal Hexagon (1609B00256)
- 1x Saw Blade 305 mm (2608642103)
- 1x Collet (1609B02585)
