Description
- Cutting width- 90 cm/35"
- Engine manufacturer- B&S
- Engine designation- Professional Series 7220
- 4-stroke engine- 2-cyl.
- Displacement- 656 cm³
- Maximum power- 16,4/22,0 kW (hp)
Robust engine and comfortable traction drive
The AS 915 Sherpa 2WD is powered by a two-cylinder engine from the Briggs & Stratton Professional Series 7220. The engine delivers 656 cm³ displacement and up to 22 hp, and is equipped with an oil and fuel pump. Variable traction drive occurs via hydrostatic transmission. Forward speeds from 0-10.5 km/h and reverse speeds from 0-8.2 km/h can be selected via one-hand operation. Another advantage: a mechanical parking brake is integrated in the drive lever. The limited slip differential can be engaged at any time for additional traction.
Closed, surfing mower deck

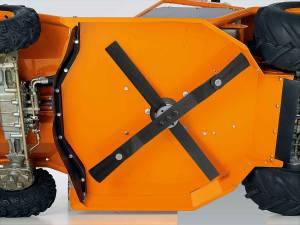

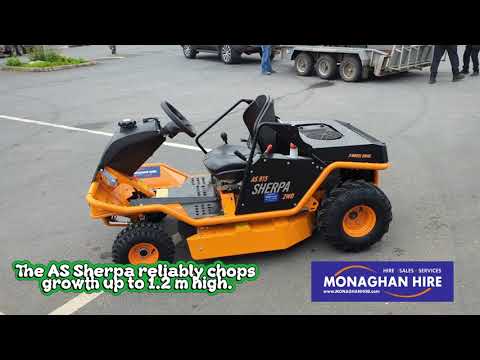

Equipped with a cross-blade system and a closed mower deck the AS 915 2WD Sherpa reliably chops growth up to 1.2 m high. Surfing suspension allows the mower deck to adapt to uneven soil and thus protects blades and turf, when driving over a hilltop for example. Cutting height is adjusted centrally in levels ranging from 50-105 mm.
Sitting "in" the machine

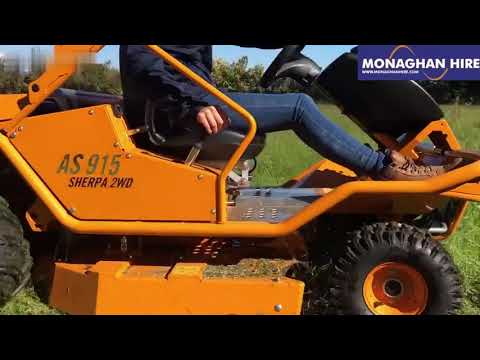

A deep sitting position gives the operator the feeling of sitting in, rather than on, the machine. This position protects the user from undergrowth, for example. The bucket seat is adjustable in length which, combined with plenty of legroom, provides space for operators up to 1.9 m tall. A spring seat package is available for even greater comfort. All operating elements are arranged logically and can be easily reached.
AS MULCHING MOWER DECK
Closed, surfing mower deck with cross-blade system and bearing-supported blades that yield to obstacles.
MAINTENANCE-FRIENDLY
Easy access to oil dipstick and air filter.
SWITCHABLE LIMITED SLIP DIFFERENTIAL
Comfortable activation of the limited slip differential via foot pedal for excellent propulsion and traction.
NARROW TURNING RADIUS
Oscillating front axle for extremely agile operation and a turning radius of just 65 cm.
Accessories (optional)
Trailer
Cargo area: L = 1071 mm, W = 607 mm, panel height: 274 mm. Permissible total weight: 100 kg. Rear panel can be removed.
Trailer hitch (Sherpa)
For connecting the AS trailer.
Snow blade
Width: 1107 mm, height: 348 mm. Adjustable on both sides.
Mulch kit (Sherpa)
For even finer mulching and more uniform cutting results on lawns with grass up to 40 cm high.
Snow chains
Cross-track chain for the drive wheels.
Seat suspension kit (AS 915)
Seat suspension with improved progressive suspension, reinforced gas pressure damper and new end stop. Adjustable from 60-120 kg.
Twin wheels (Sherpa)
One pair (2x2) of rear twin tyres with extreme tread pattern for highest traction.
Tilt meter
Convenient display of slope incline.
Steering knob
Facilitates one-handed steering and maoeuvring on level terrain.
