Description
- Featuring a 132cm (52") fabricated deck constructed from 11-gauge steel
- Powered by an Ariens Twin Cylinder 764cc engine
- Dial-operated cutting height adjustment with 13 cutting positions
- Tubular steel frame
- Plush high-back seat with arm rests and padded control arms
- Range of optional accessories is available
- 3-year or 300 hour warranty

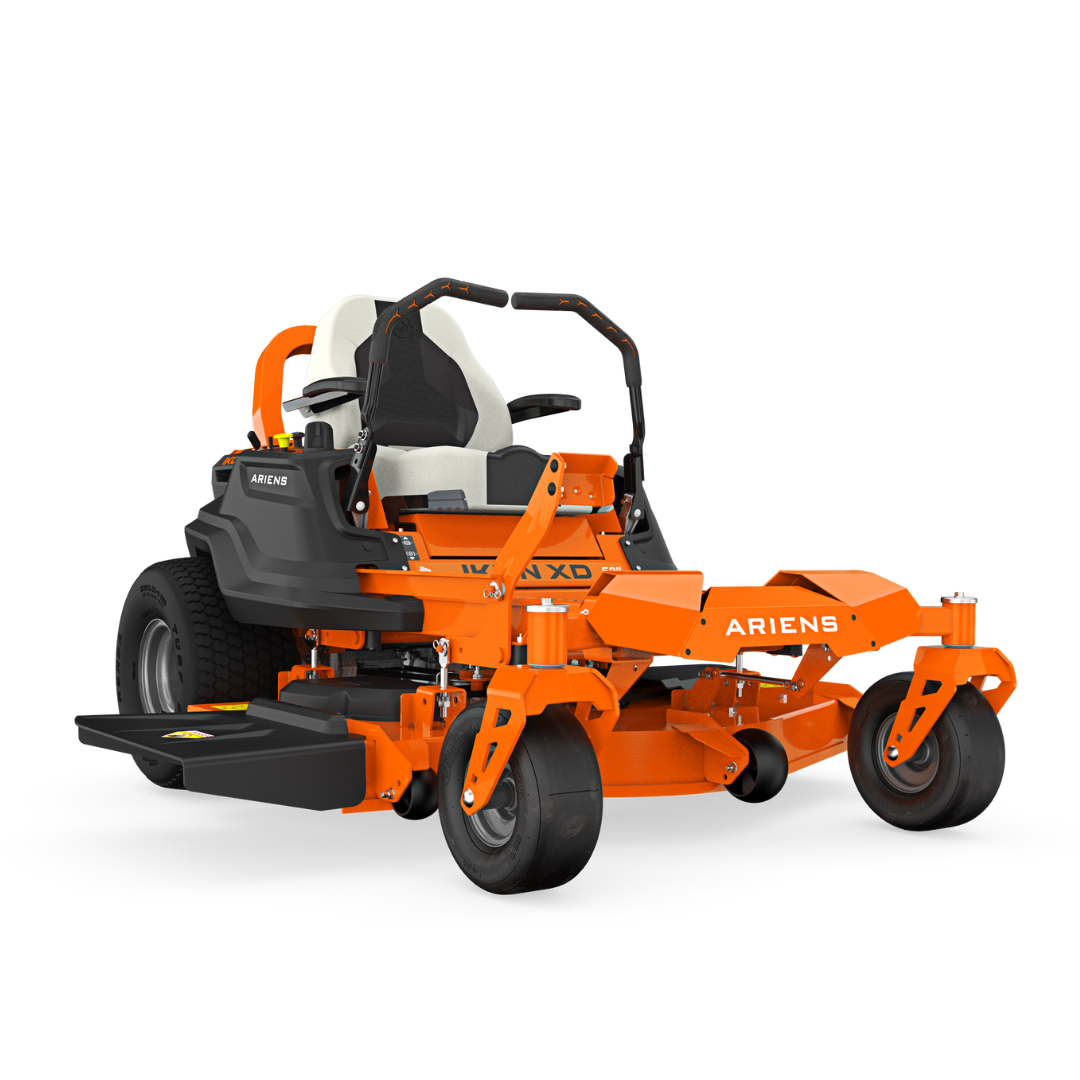

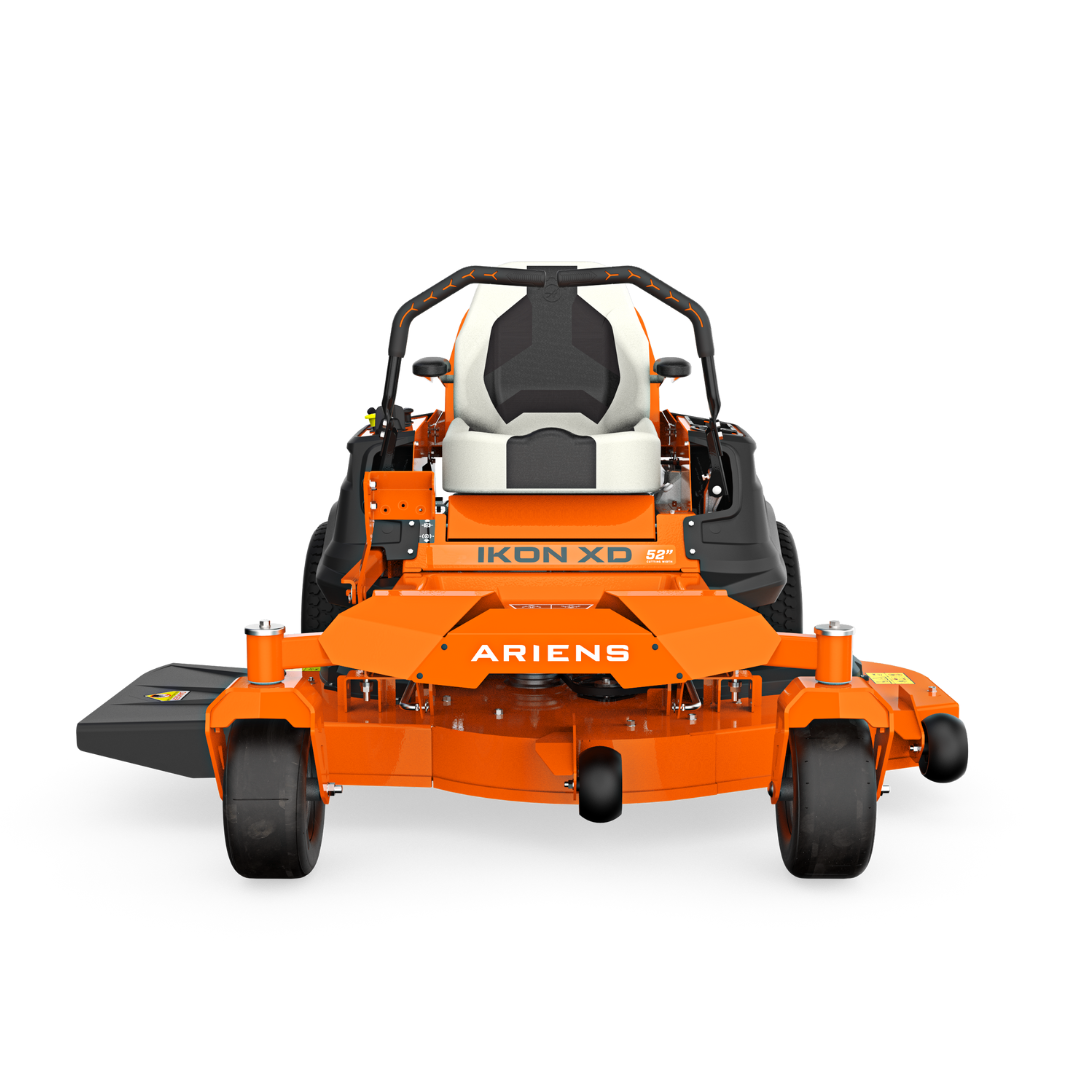

Model Ikon XD: 52(915343)
Engine Ariens 754cc
Transmission Hydro-Gear EZT Transaxle
Fuel Capacity 10.5 litres
Drive Speed Approx 11.2kph(FWD) 4.8kph(REV)
Deck 11ga Fabricated
Number of blades 3
Deck Lift System Foot Operated
Cutting Width 52”/132cm
Cutting Height 7 Positions 1.5”-4.5”/3.8cm-11.4cm
Seat High Back c/w Armrests
Hour Meter Yes
ROPS No
Warranty(Machine) 3 Year/300 Hour
Features:-
COMMERCIAL-STYLE DECK
10.2 cm deep fully fabricated with advanced airflow for an exceptional cutting performance.
PLUSH SEAT*
The plush, high back seat features padded arm rests for enhanced operator comfort. Seat adjustment is quick thanks to easily accessible controls.*Select models only.
LARGE TYRES
With a large diameter, these tyres offer excellent traction and a smooth ride.
HYDROSTATIC EZT TRANSAXLES
A professional-grade transmission with increased torque and load capacity provides improved response and control.
DIAL-OPERATED CUT HEIGHT
13 cutting positions at your fingertips. Easy cutting height adjustments – from 3.8cm to 11.4cm (1 ½” to 4 ½”) – with just the turn of a dial.
PREMIUM ENGINES
Only premium engines are fitted for power, performance and fuel efficiency. Chose from an Ariens or Kawasaki twin cylinder engine.
