Description
The Ariens APEX is a commercial grade zero-turn mower that has been designed to be used all day, every day.
When it comes to precision, comfort and durability, the Ariens APEX outperforms just about anything else available in its class. Ariens understand that the most important aspect affecting the productivity of a machine is the person using it.
So this ground-up new zero-turn is designed around the operator. Driving the APEX feels second nature and innovative features such as progressive steering and a plush, padded high-back seat with armrests make it comfortable for day-long use.

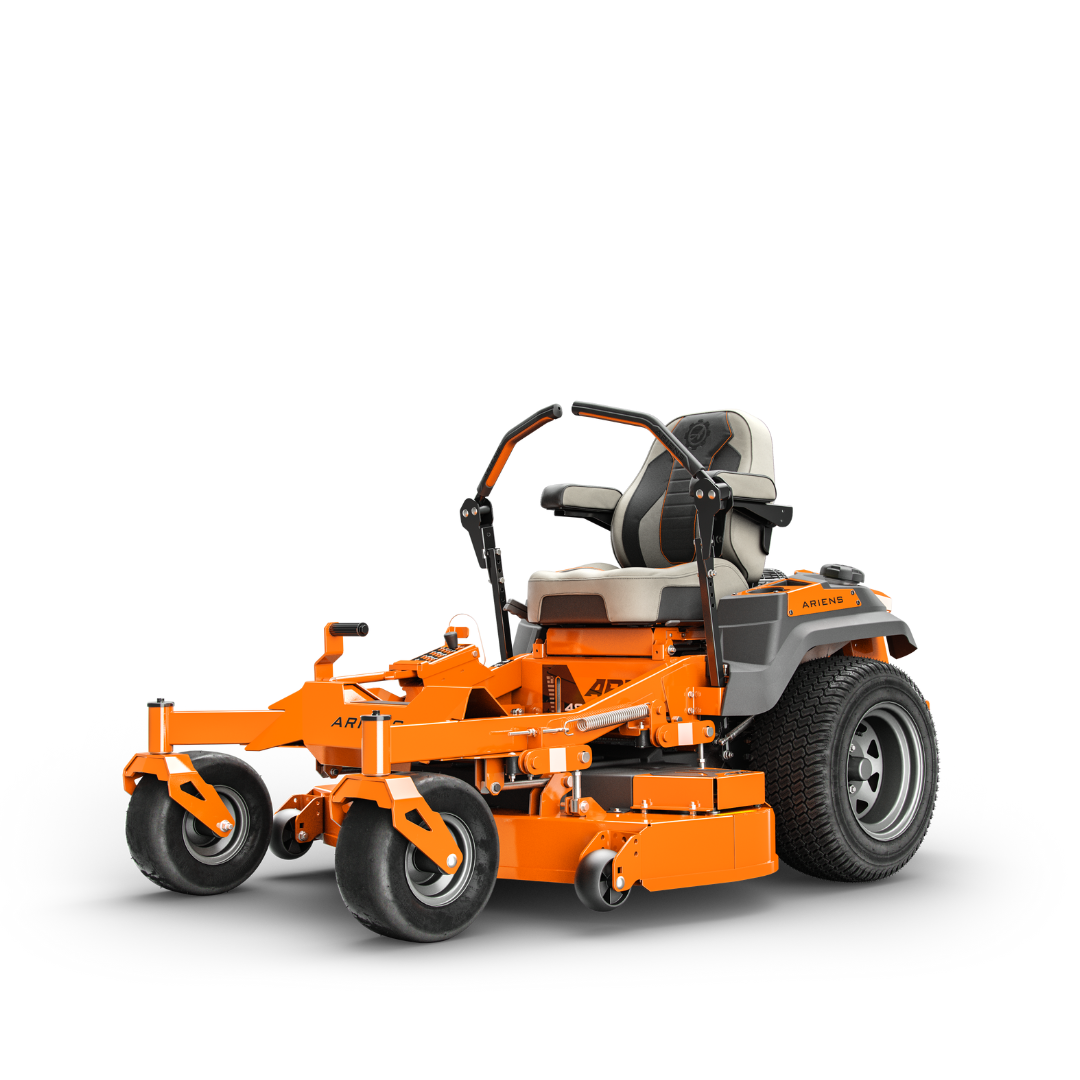

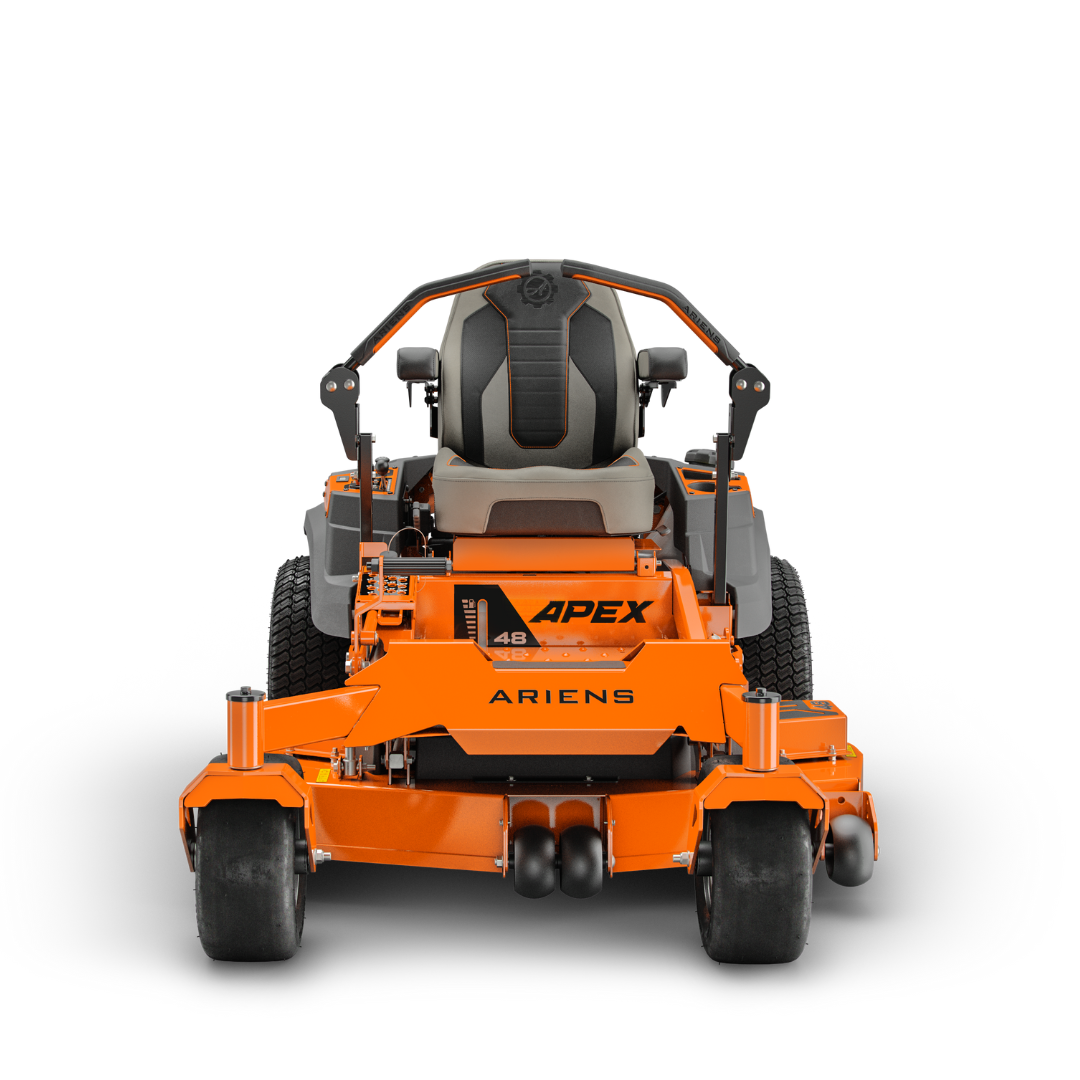

The APEX 48 R comes in a Rear discharge deck configuration. Decks are fabricated, 14cm (5½") deep and made of 10-gauge steel. A fully tubular steel frame provides unprecedented strength, just where
it’s needed most.
ADVANCED FRAME
it’s needed most.
ADVANCED FRAME
Industry-leading frame design features large-formed tubular frame rails and minimal welds to support the loads of the machine with unprecedented strength and stability
BELT TENSION TECHNOLOGY
BELT TENSION TECHNOLOGY
Ariens self-adjusting belt tension technology keeps belt tension constant, which maximises belt life, minimises wear, and maintains a consistent, quality cut
ROLL-OVER PROTECTION SYSTEM
ROLL-OVER PROTECTION SYSTEM
Frame supports an optional folding ROPS for added operator protection
COMMERCIAL DECK
COMMERCIAL DECK
A durable, 10-gauge steel deck is designed with 14cm (5½") depth, providing optimal airflow in all mowing conditions for professional cutting performance.
COMFORT
COMFORT
The adjustable, high-back seat features extra padding, while padded armrests provide additional support, helping to lessen fatigue during longer operating periods.
| Deck Type | Rear Discharge | Limited Warranty Machine | 4 years / 500 hours |
|---|---|---|---|
| Height | 120cm | Width | 124cm |
| Length | 201cm | Weight | 372kg |
| ROPS Rollover Protection | Optional | Cutting Positions | 15 |
| Spindle Clutch | Electric Ogura® | Spindles Drive | V-Belt |
| Spindle Shaft | Steel, StressProof® | Spindle Material | Forged Aluminium |
| Deck Lift System | Foot-Operated | Deck Construction | Welded |
| Cutting Width | 48" (122cm) | Maximum Speed (Forward / Reverse) | 12.9 km/h (8 mph) / 6.4 km/h (4 mph) |
| Maximum Engine Power | 15.5 kW / 3,600rpm | Drive System | Hydro-Gear® ZT-3100® Transaxles |
| Engine Displacement | 726cc | Rear Wheels | 22 x 10-12 inches |
| Front Wheels | 13 x 6.5-6 inches | Engine | Kawasaki® FR691 V-Twin OHV |
| Deck Material | 10-gauge Fabricated Steel | Hour Meter | Yes |
| Number of Blades | 3 | Fuel Tank Capacity | 19.3 Litres |
| Seat | High Back Premium with Padded Armrests, Adjustable | Cutting Height | 3.8cm - 12.7cm (1.5" - 5") |
