Description

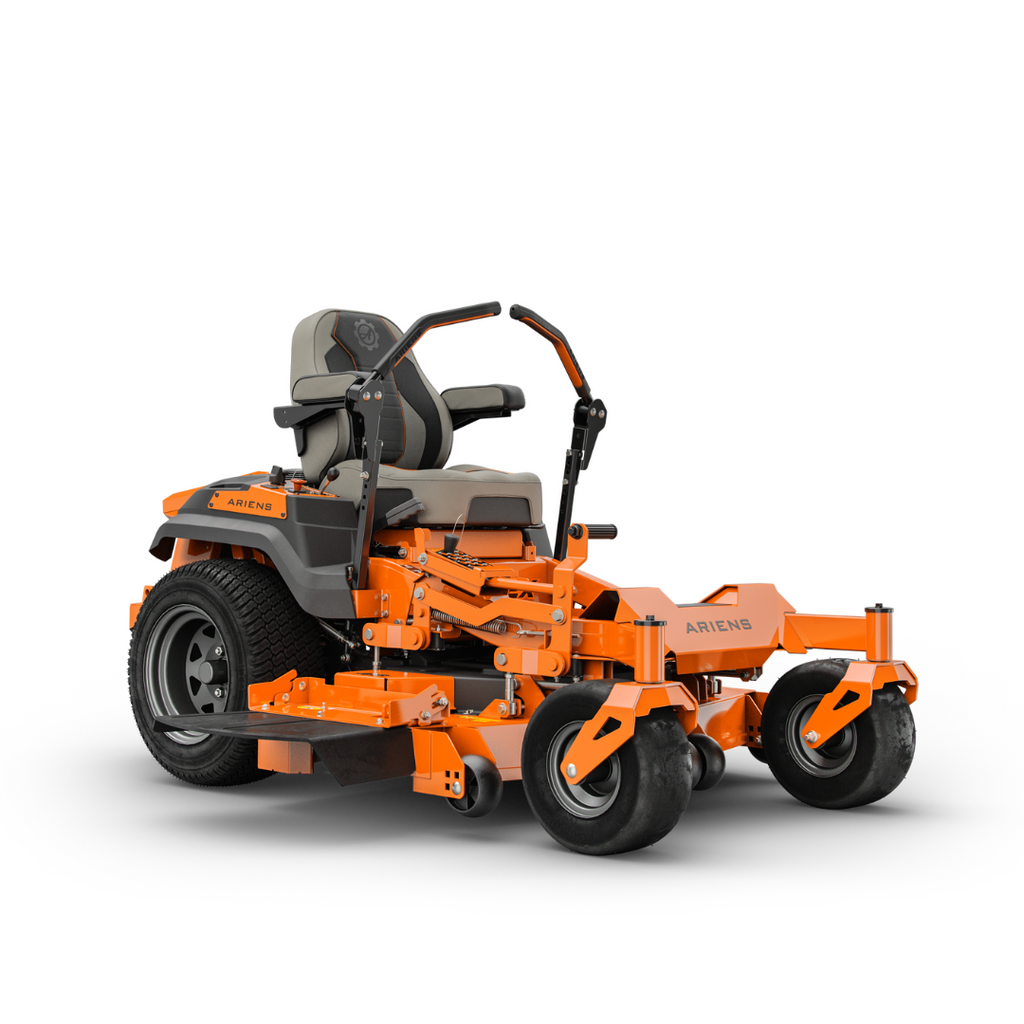

- The APEX 48 features a 122cm (48") fabricated deck that’s 14cm (5½") deep and made of 10-gauge steel
- Powerful Kawasaki® FR691 V-Twin 726cc engine
- Industry-leading, fully welded tubular steel frame
- Self-adjusting belt technology
- High-back plush seat with padded arm rests
- Foot-operated, spring assisted deck lift with 15 cutting positions
- ROPS capable design
- Range of optional accessories is available
- 4-year or 500 hours warranty
Technical Specifications:-
Model Number -991316
Motor-Kawasaki® FR691 V-Twin
Engine Displacement-726cc
Starter-Electric
Carb Compliant-No
Deck Configuration-Side Discharge
Deck Material-10 ga steel
Deck Construction-Fabricated
Number of Spindles-3
Blade Tip Speed-18,000fpm / 91.4m/s
Spindle Bearings-Ball Bearing
Cutting Width-122 cm / 48"
Cutting Height Min-3.8 cm / 1.5"
Cutting Height Max-12.7 cm / 5"
Wheels Front Axle-Fixed
Seat-High Back Premium w/ Padded Armrests
Hour Meter-Standard
Warranty Machine-4 Year / 500 Hours
Drive Type-Hydro-Gear® ZT-3100 Transaxles
Fuel Capacity-19.3 ltr
Ground Speed Forward-12.9 kph / 8 mph
Ground Speed Reverse-6.4 kph / 4mph
Spindle Material-Forged Aluminium
Spindle Shaft-Steel
Deck Drive-Belt
Deck Engagement-Electric Ogura
Deck Lift System-Foot Operated
Cutting Positions-15
Wheels Front-33cm x 16.5cm - 15.2cm / 13" x 6.5 - 6"
Wheels Rear-55.9cm x 24.3cm - 30.5cm / 22" x 9.5 - 12"
Weight-374.2kg / 825lb
Length-200.6 cm / 79"
Width-160 cm / 63"
Height-119.3 cm / 47"
