Description

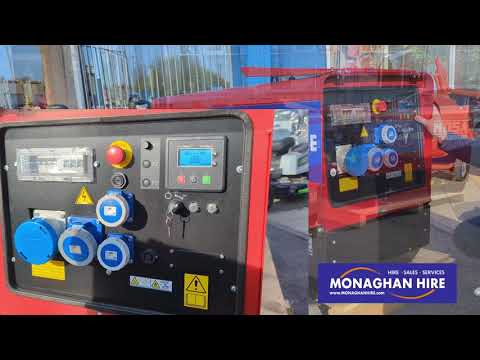

Italian Diesel generating set KOHLER KDW1003 - Single-phase synchronous alternator - Water Cooled
The Automatic Vcoltage Regulator (AVR) is an electronic device that regulates the voltage level at all times to maintain precise AC output from the generating set. The AVR calculates how much voltage has to be sent to the exciter numerous times a second, therefore stabilising the output voltage to a predetermined set point.
The control characteristics of an AVR system are much more accurate than those of self-regulated alternators.
POWER RATINGS
- Stand-By single-phase power: 16 kVA (14.4 kW) / 230V/69.6A
- PRP single-phase power: 14.5 kVA (13 kW) /230V/ 63A
- Frequency: 50 Hz
GENERAL SPECIFICATIONS
- Fuel tank capacity: 38 lt.
- Running time (75% to PRP): 10.3 h
- Measured acoustic power LwA (pressure LpA): 93.6 dB(A) (68.6 dB(A) @ 7m)
- Guaranteed acoustic power LwA (pressure LpA): 95 dB(A) (70 dB(A) @ 7m)
- Dry Weight: 388 kg
- Dimensions (LxWxH): 1650x710x931 mm
| Model | Fuel | Starter | Output Stand By | Output PRP | Cylinders / Displacement | Speed | Cooled |
|---|---|---|---|---|---|---|---|
| KOHLER KDW1003 | Diesel | Electric | 17.15 kW (23.3 hp) | 15.6 kW (21.2 hp) | 3 / 1028 cm³ (1.028 lt.) | 3000 rpm | Water |
| Model | Fuel | Starter | Output Stand By | Output PRP | Cylinders / Displacement | Speed | Cooled |
|---|---|---|---|---|---|---|---|
| KOHLER KDW1003 | Diesel | Electric | 17.15 kW (23.3 hp) | 15.6 kW (21.2 hp) | 3 / 1028 cm³ (1.028 lt.) | 3000 rpm | Water |
